Product Name: | Dc Breaker 2 Pole 63A 12V 24V 36V 550V MCCB DC Battery Moulded Case Circuit Breaker With CE Certification |
Model: | CM1 |
Rated Current: | 63A |
Mechanical Life: | 20000 times |
Electrical Life: | 10000 times |
Installation method: | Fixed/plug-in |
Poles: | 2P |
Certification: | TUV ,CE,ROHS |
Features | 1. Wide working temperature range 2. Overload in short circuit, rated current and residual current in short circuit are not limited 3. Excellent arc extinguishing performance and good selectivity 4. Strong ability to resist electromagnetic interference 5. It has good temperature characteristics and is suitable for outdoor use 6. light weight, small size 7. The installation method is flexible and diverse, and it is easy to combine with various systems. |

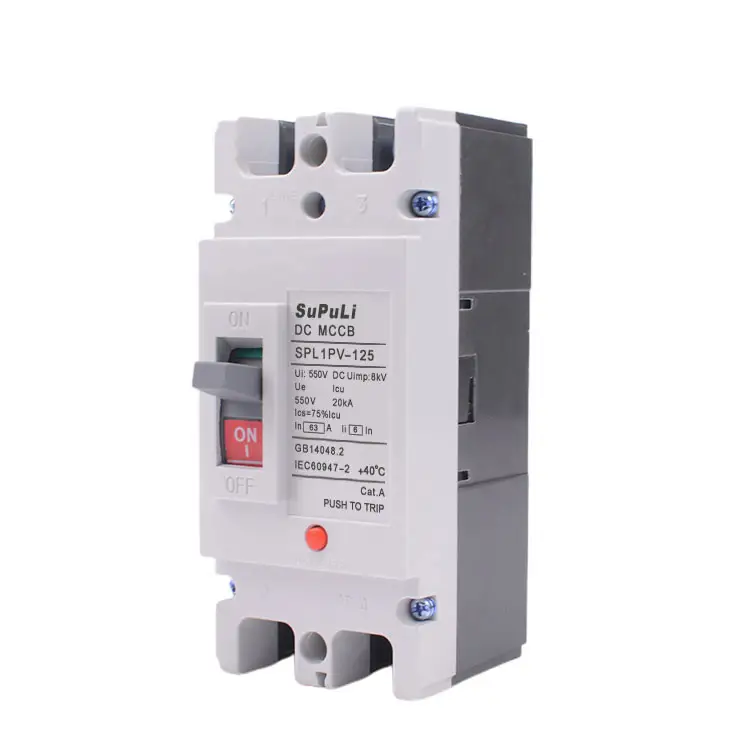

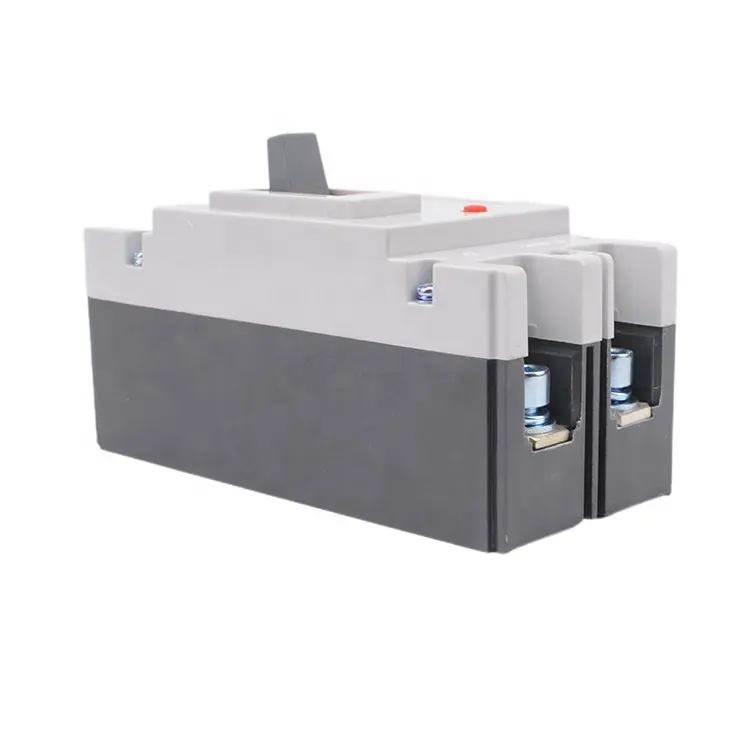

DC Molded Case Circuit Breaker 2Pole 63A
Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less, direct current rating voltage 550V or less.Products according IEC60947-2, GB14048.2 standard.
