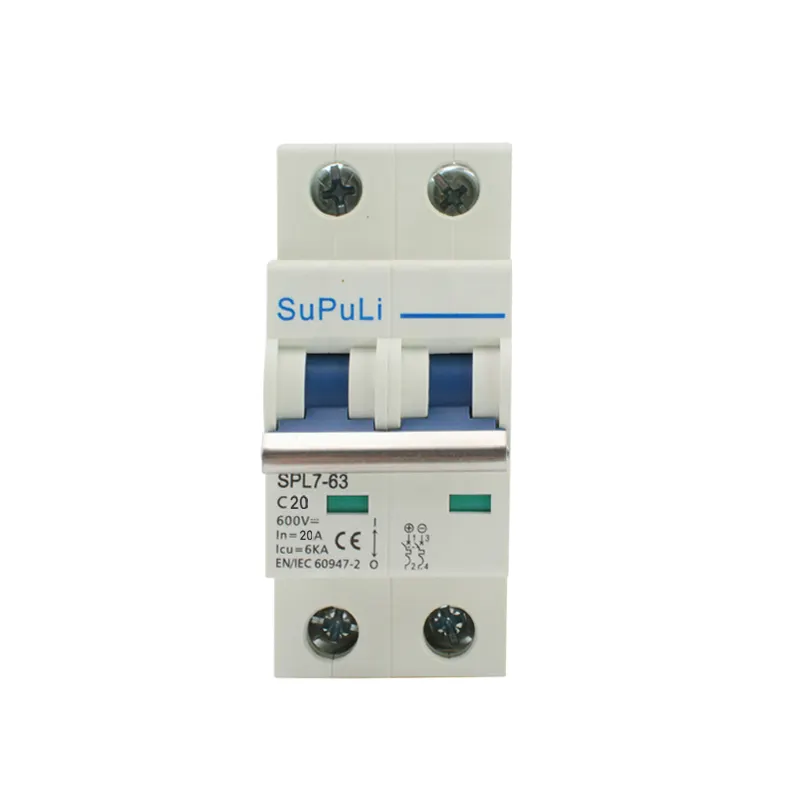

Product Model | SPL7-63 | ||
Pole | 1P | 2P | |
Rated Current (A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 | ||
Rated Voltage (Vdc) | 300 | 600 | 1000 |
Breaking Capacity(kA) | 6 | ||
Characteristic Curve | C | ||
Working Temperature | -5℃ ~+40℃ | ||
Enclosed Class | IP20 | ||
Standard | IEC60947-2 | ||
Frequency | 50/60Hz | ||
Electrical Life | Not less than 8000 times | ||
Mechanical Life | Not less than 20000 times | ||

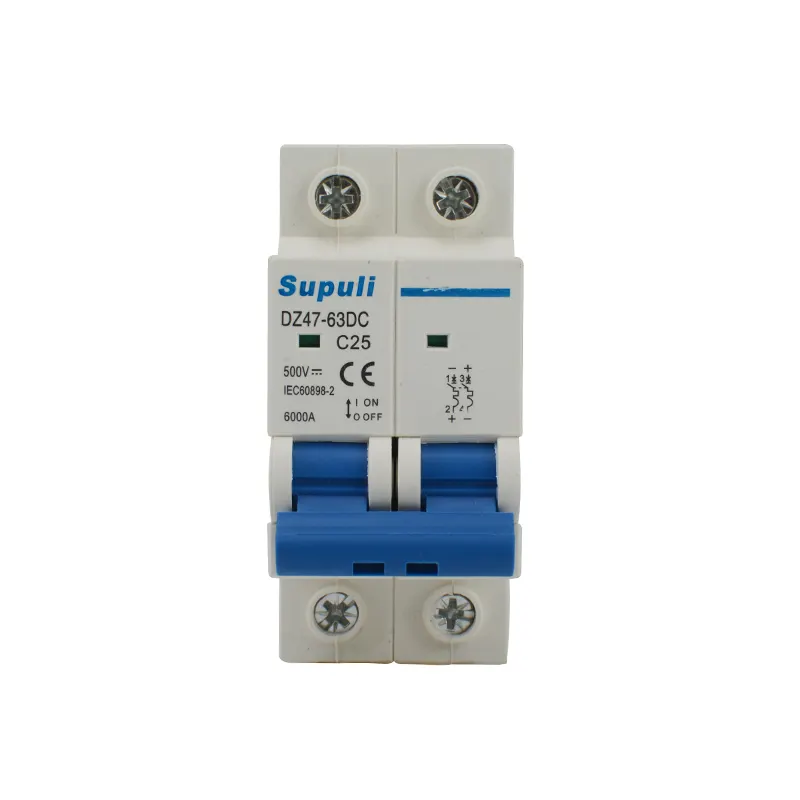

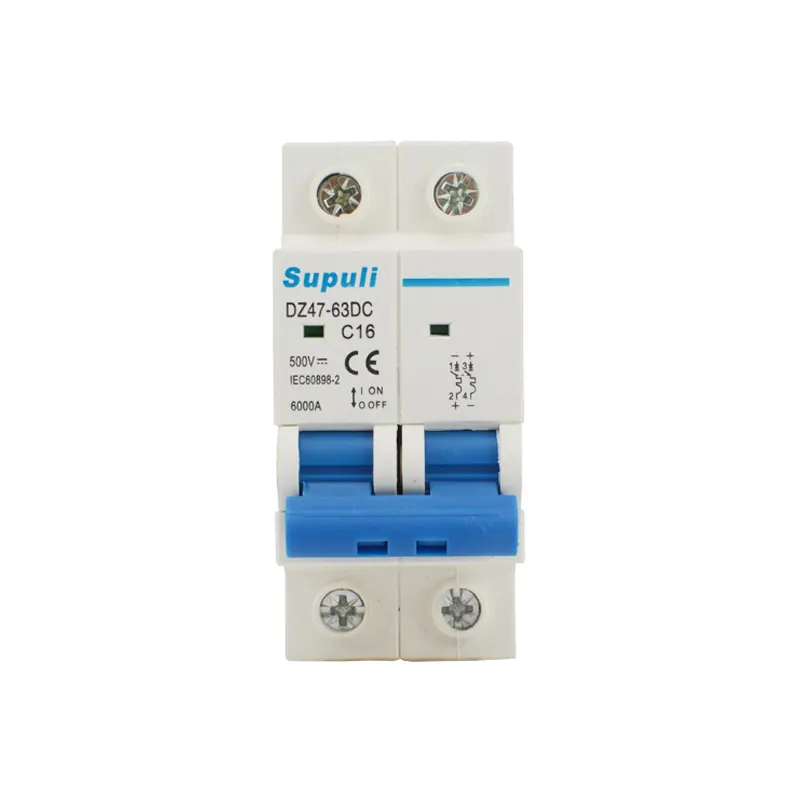

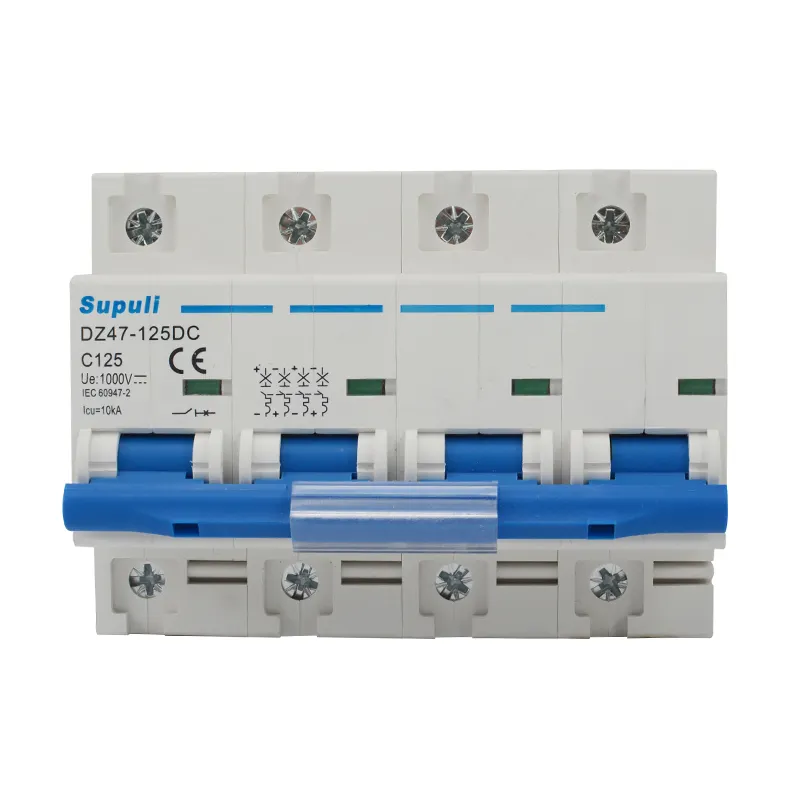

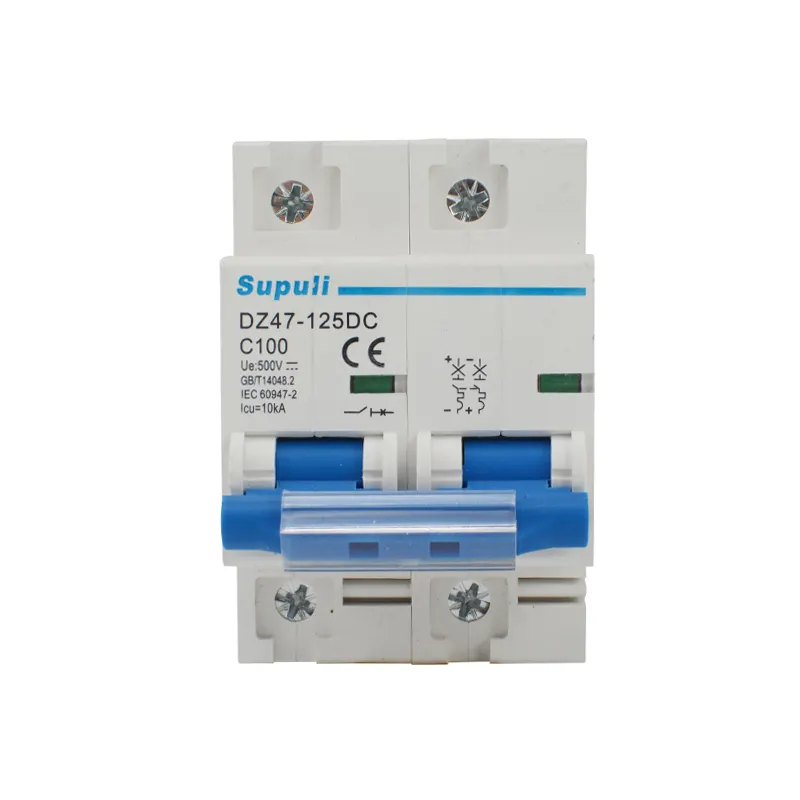

Miniature Circuit Breaker
DC MCB supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
