Product Name | Dc Breaker 40A 2P 600V 6KA MCB Dc Mini Miniature Circuit Breaker With CE Certification | |||
Rated voltage | 600V | |||
Rated current | 20A | |||
Current shell frame | 63A | |||
Breaking capacity | 6kA | |||
Poles | 2P | |||
Working Temperature | -35°C-70°C | |||
Certificate | TUV 、CE、ROHS、 | |||
Features | 1. Overload and the short circuit protection function 2. Non-polarity and Polarity both available 3. Rated short circuit breakingcapacity up to 6kA 4. Rated Voltage up to 600V 5. Rated Current In up to 63A 6. Designed for PV, energy storage and other DC applications 7. 2 years warranty, product insurance, and recall insurance available | |||

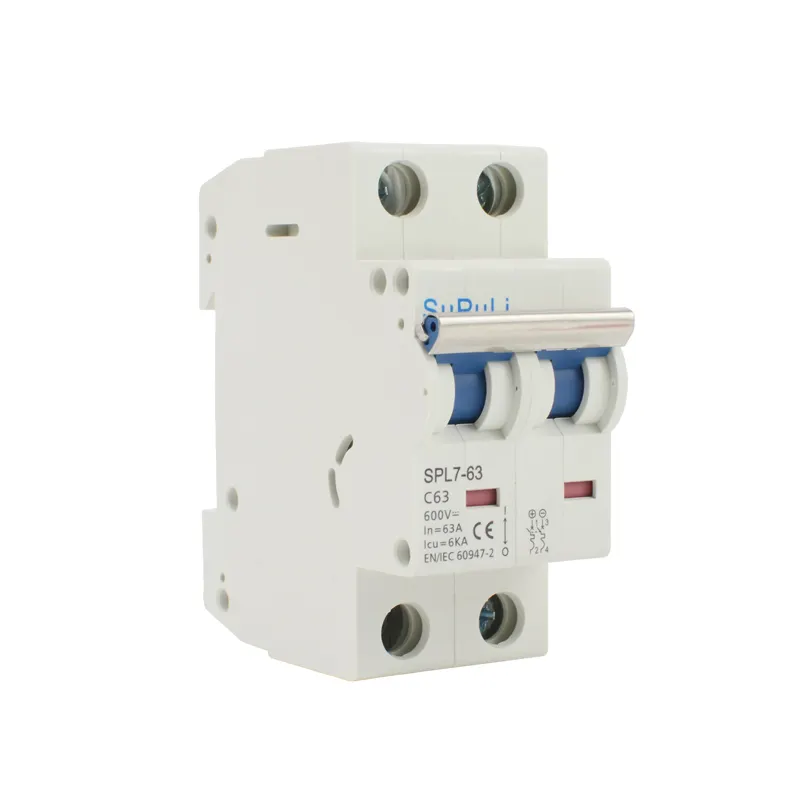

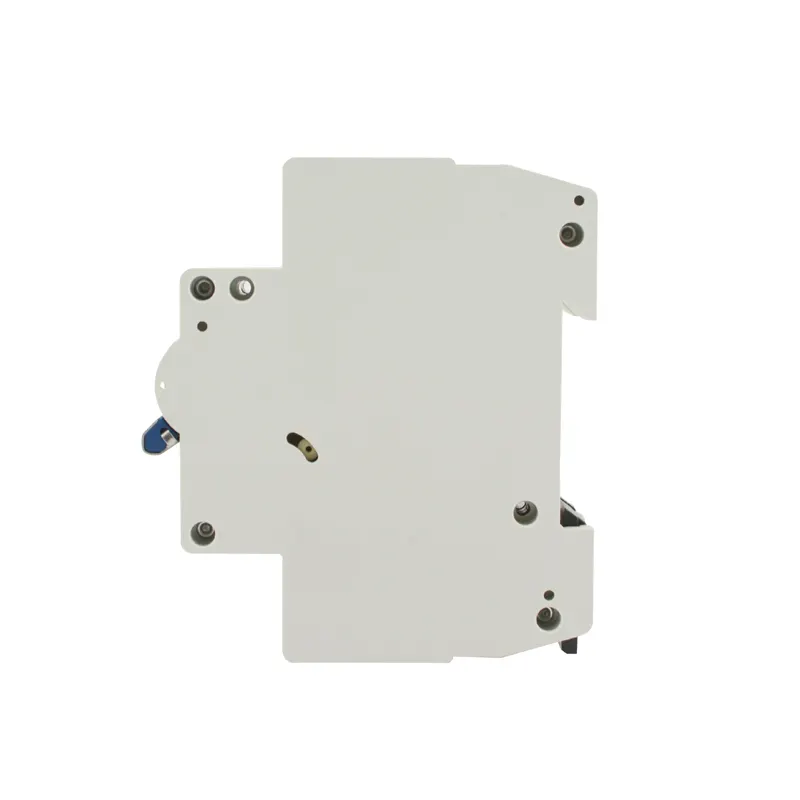

DC Miniature Circuit Breaker 2 Pole 20A 600V
DC MCB supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
