Product Name | DC Breaker 2 Pole 16A 500V MCB DC Miniature Circuit Breaker With CE Certification |
Rated Current (A) | 16AMP |
Poles | 2P |
Rated Voltage (Vdc) | DC550V |
Breaking Capacity(kA) | 6KA |
Characteristic Curve | C |
Working Temperature | -10℃ ~+40℃ |
Frequency | 50/60Hz |
Standard | IEC60947-2 |
Features | 1. Overload and the short circuit protection function 2. Non-polarity and Polarity both available 3. Rated short circuit breakingcapacity up to 6kA 4. Rated Voltage up to 500V 5. Rated Current In up to 16A 6. Designed for PV, energy storage and other DC applications 7. 2 years warranty, product insurance, and recall insurance available |

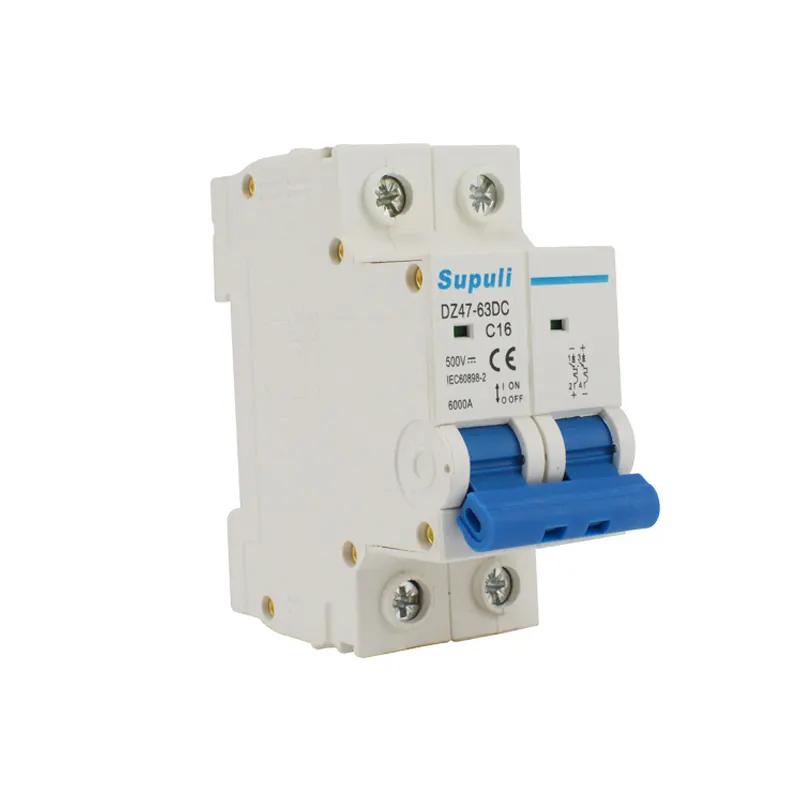

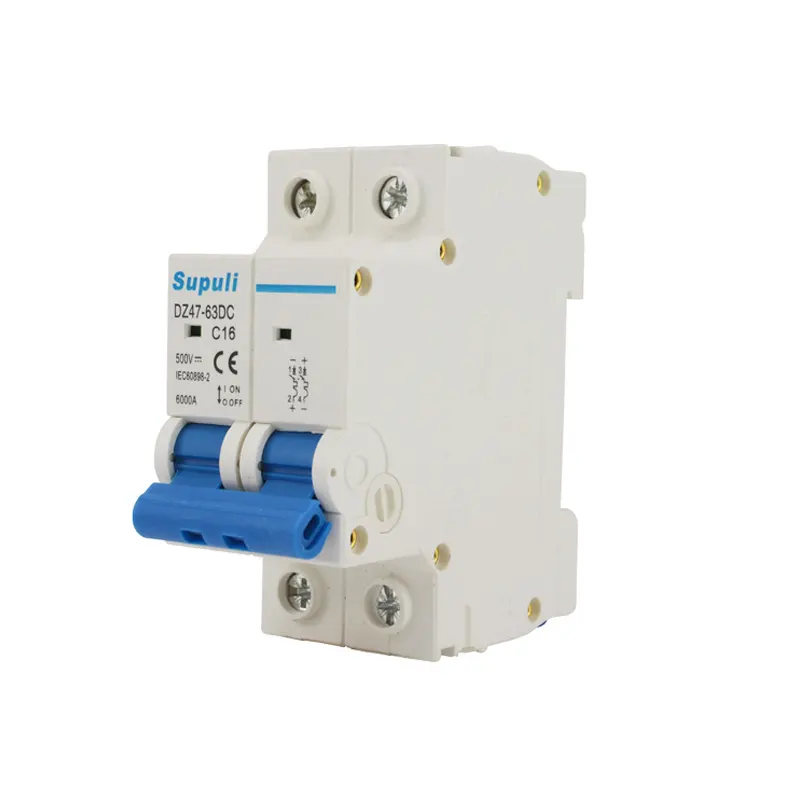

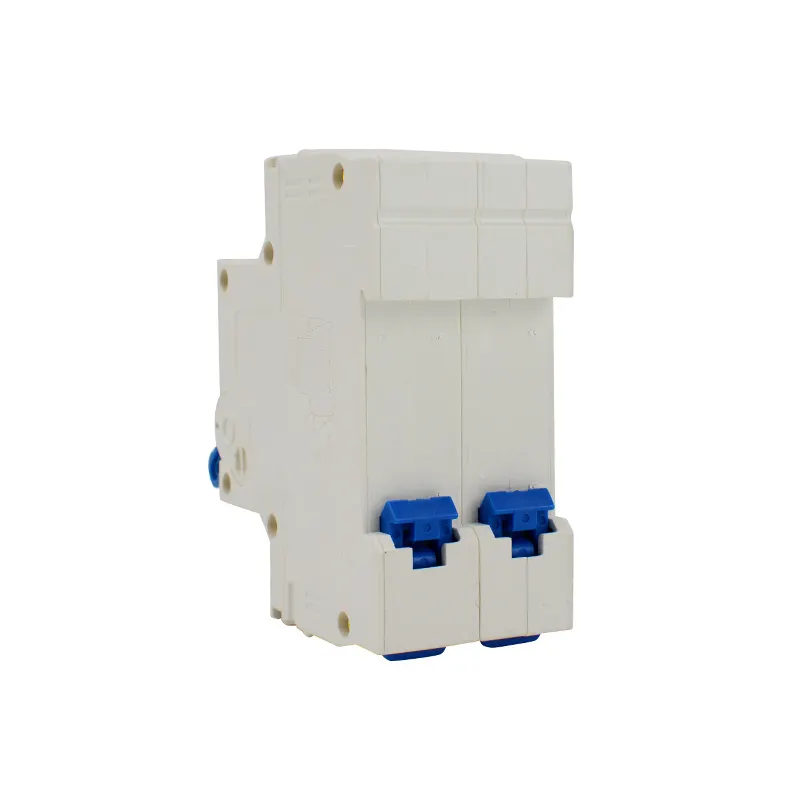

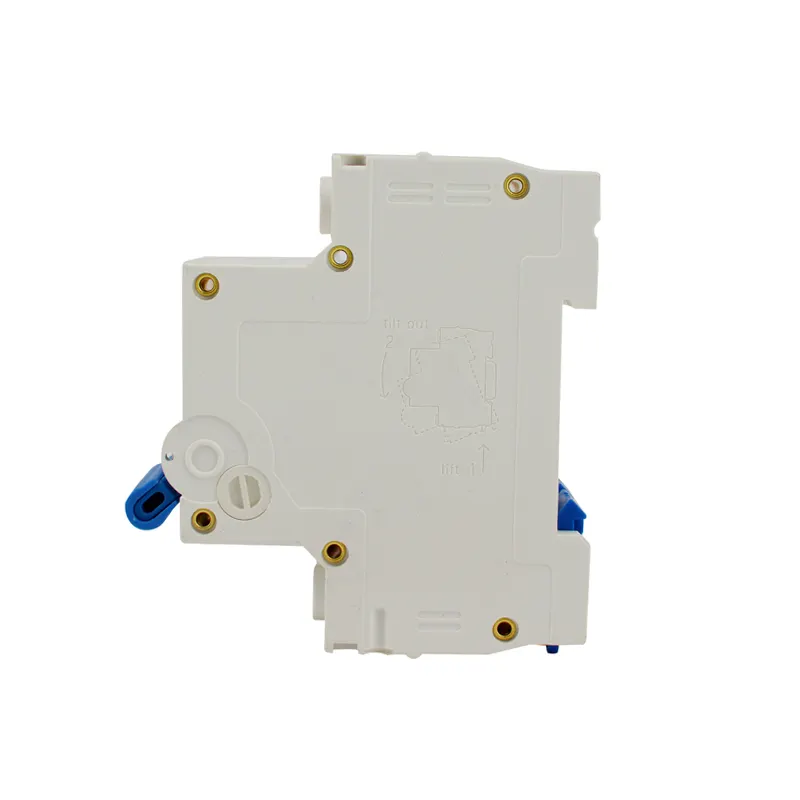

DC Miniature Circuit Breaker 2 Pole 16A 500V
DC MCB supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
