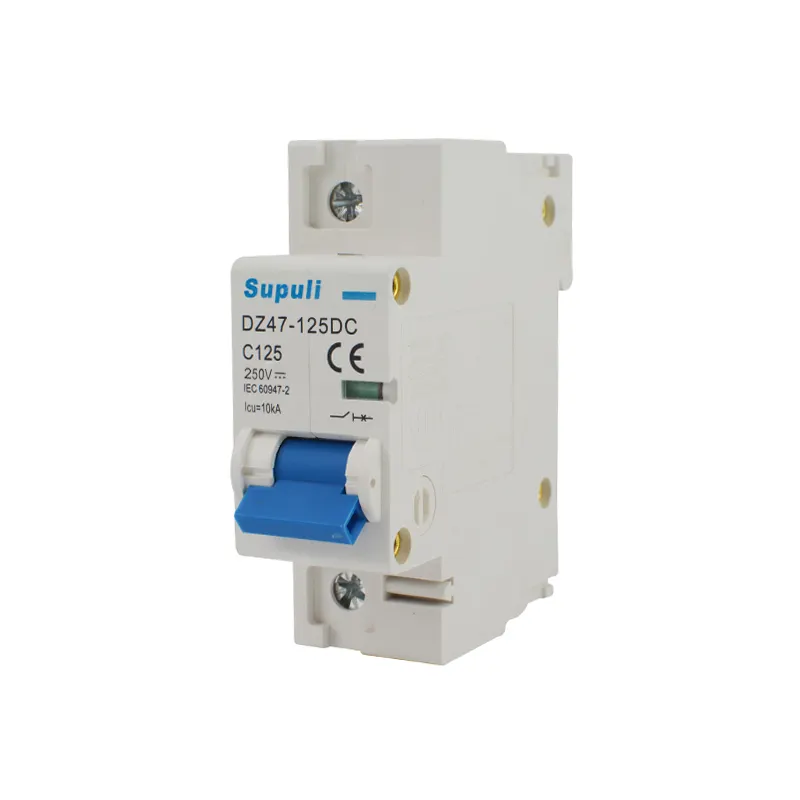

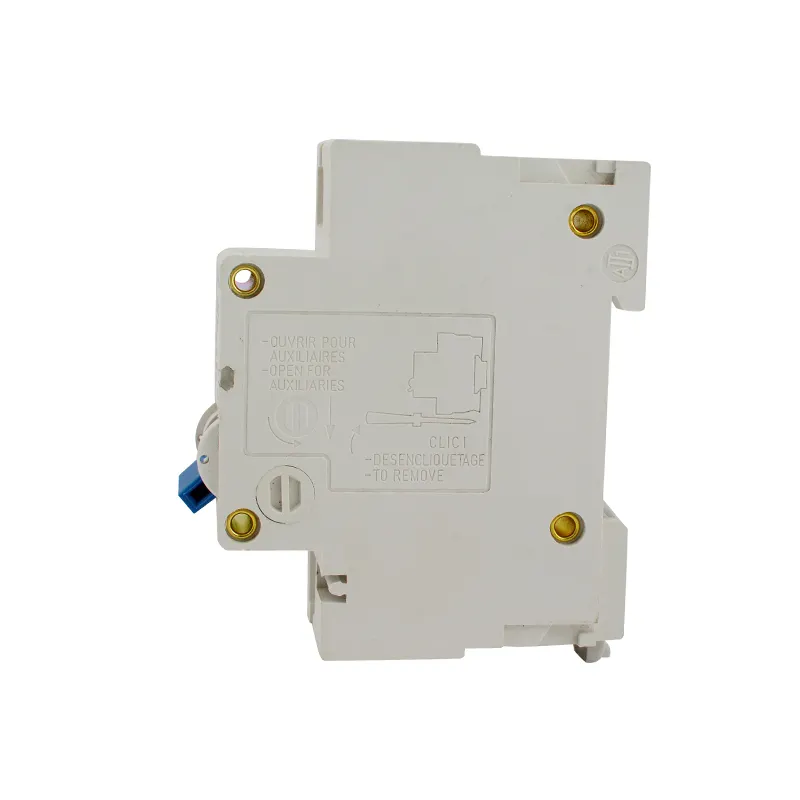

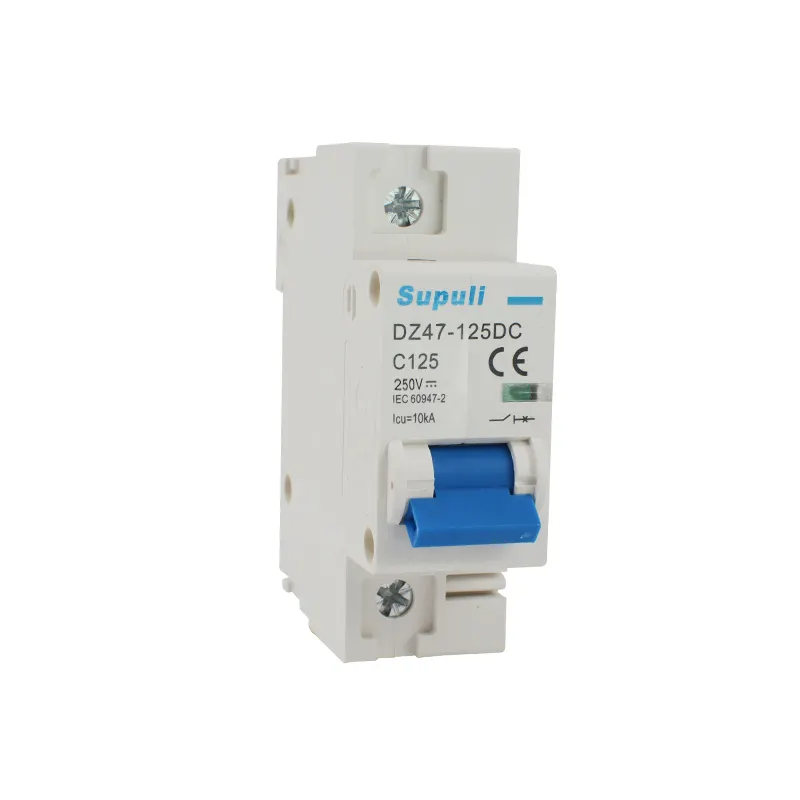

Product Name | DC Circuit Breaker 1Pole 125A 250V MCB DC breaker With CE Certification | |||
Rated voltage | DC 250V | |||
Rated current | 125A | |||
Current shell frame | 80A/100A/125A | |||
Breaking capacity | 6kA | |||
Poles | 1Pole | |||
Characteristic Curve | C | |||
Working Temperature | -35°C-70°C | |||
Electrical Life | 10000 times | |||
Mechanical Life | 20000 times | |||
Certificate | TUV 、CE、ROHS | |||
Features | 1. Overload and the short circuit protection function 2. Non-polarity and Polarity both available 3. Rated short circuit breakingcapacity up to 10kA 4. Rated Voltage up to 1000V 5. Rated Current In up to 125A 6. Designed for PV, energy storage and other DC applications 7. 2 years warranty, product insurance, and recall insurance available | |||
DC Miniature Circuit Breaker 1Pole 125A 500V
DC MCB supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
