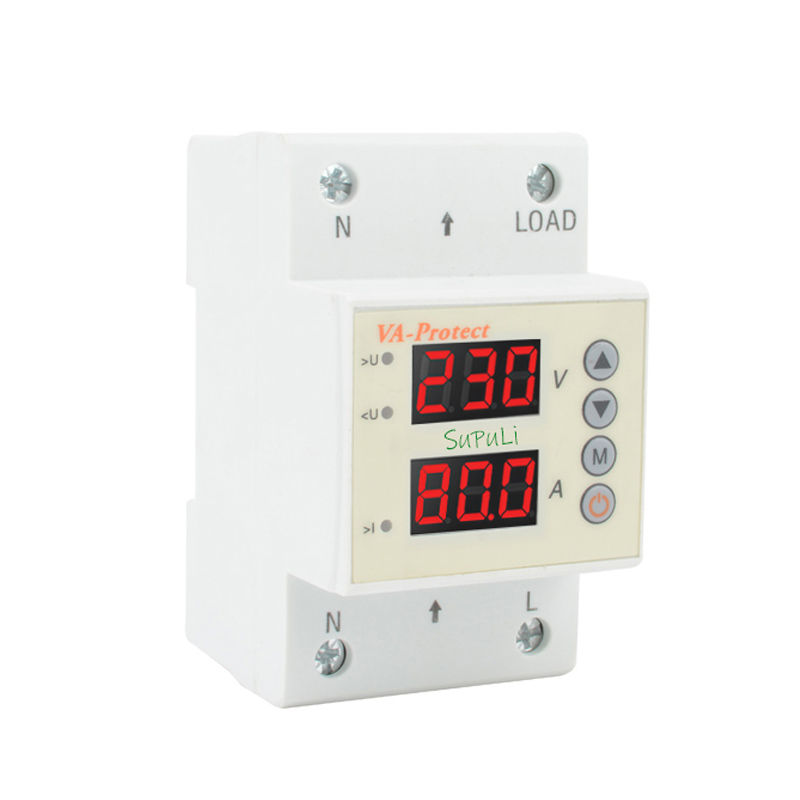

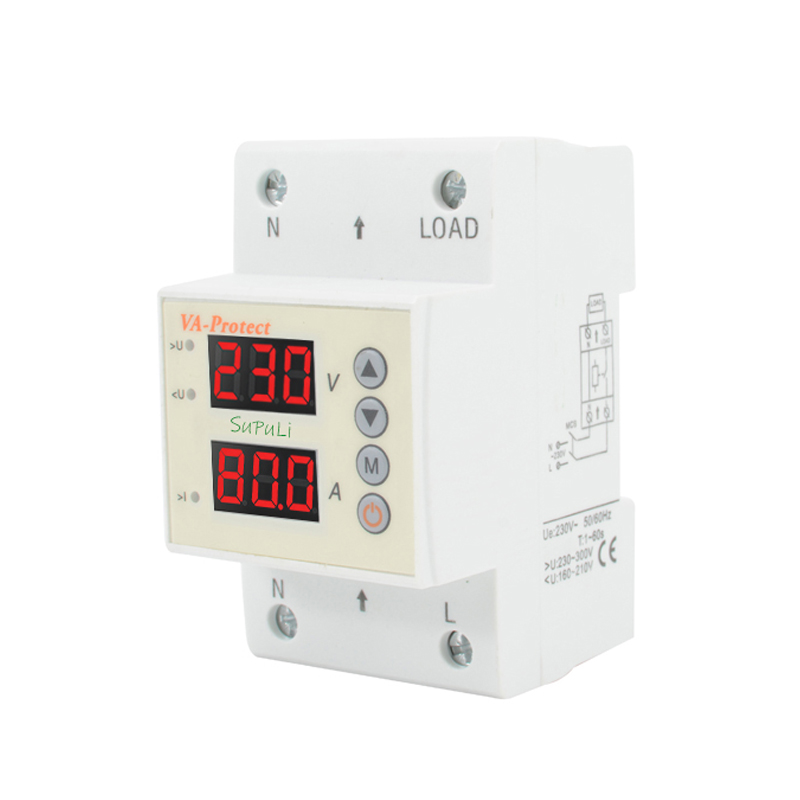

Product Name | 80A 230V Ac Din Rail Adjustable Over Voltage And Under Voltage Protector Protective Device Relay With Over Current Protection |
Pole No | 1P+N |
Rated voltage | 220/230VAC |
Rated current | 80A |
Adjustable Over-voltage | 240~300V(Default: 270V) |
Under-voltage | 140~210V (Default: 170V) |
Over-current | 1-80A （Default: 80A） |
Set boot time | 1~300S (Default: 5S ) |
Recovery delay time | 1~300S (Default:30s) |
Power consumption | ＜2W |
Electro-mechanical life | 100,000 times |
Installation | 35mm symmetrical DIN rail |
