Product Name: | 230V 380V 63A 3Phase Voltage Protector Adjustable Digital Over Voltage And Under Voltage Protector Device | |||
Rated supply voltage | AC 380V | |||
Rated Current: | 63A | |||
Operation voltage range | A C80V ~440V | |||
Rated frequency | 240V ~300V | |||
Undervoltage(<V)selting range | 140V ~200V | |||
> V and<V trip delay | 1s~300s | |||
Voltage measurerment accuracy | 1%(Not exceeding 1% of the overall range) | |||
Rated insulation voltage | 400V | |||
Output contact | 1N O | |||
Electrical life | 3 | |||
Mechanical life | 1000000 | |||
Protection degree | 10000000 | |||
Pollution degree | I P 20 | |||
Altitude | ≤2000米 | |||
Oporatintg temperature | -55℃ ~55℃ | |||
Humidity | ≤50%at40C(without condensnton) | |||
Storage temperature | -30℃ ~70℃ |

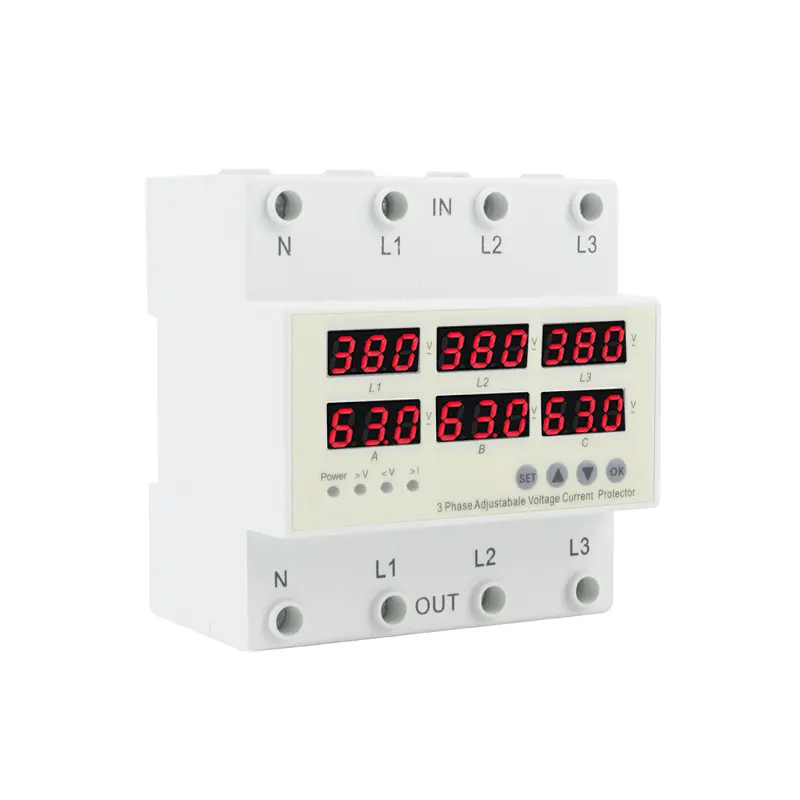

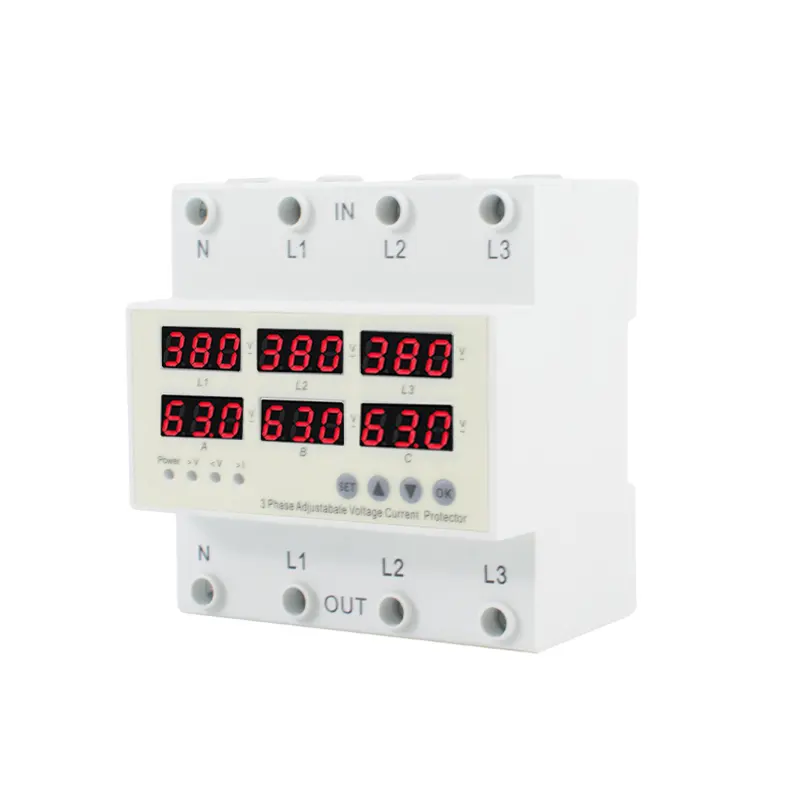

380V 63A 3Phase Adjustable Voltage Protector
Product integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment.
