Product Name | 40A 230V Din Rail Automatic Recovery Reconnect Over Voltage And Under Voltage Protective Device Protection Relay |
Rated AC voltage | 230V±10% |
Rated voltage | 220/230VAC |
Rated current | 40A |
Over-voltage action cut-off value | >270VAC+/-5V |
Normal-voltage value | 175-270VAC |
Under-voltage action cut-off value | ＜170AC+/-5V |
Over voltage and under voltage cut-off | ＜1s |
Electricity transmitting delay after cut-off | ＜60s |
Self power consumption | ＜2W |
Electro-mechanical life | 100,000 times |
Installation | 35mm symmetrical DIN rail |

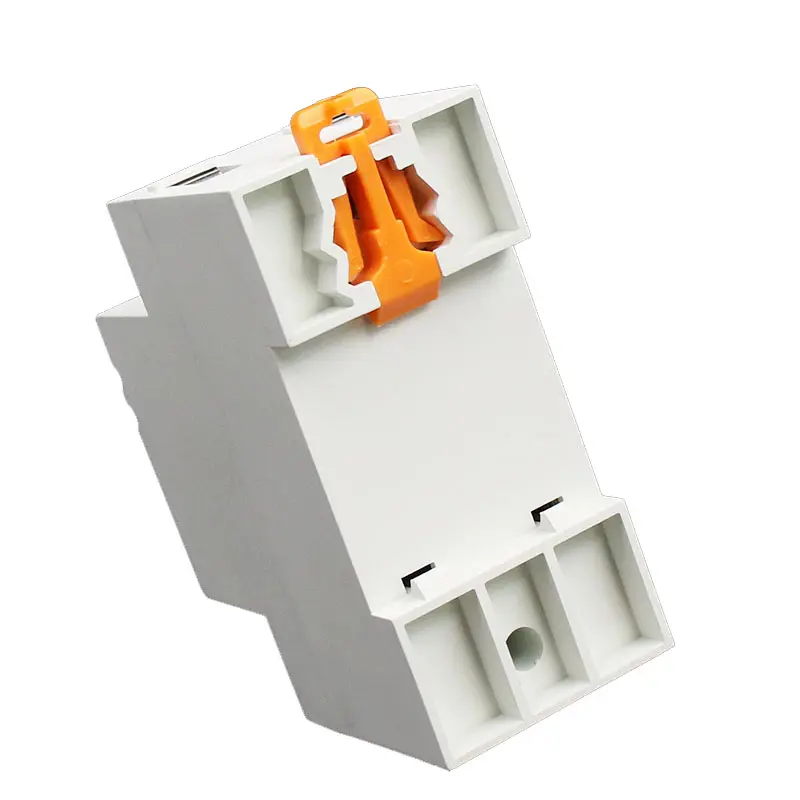

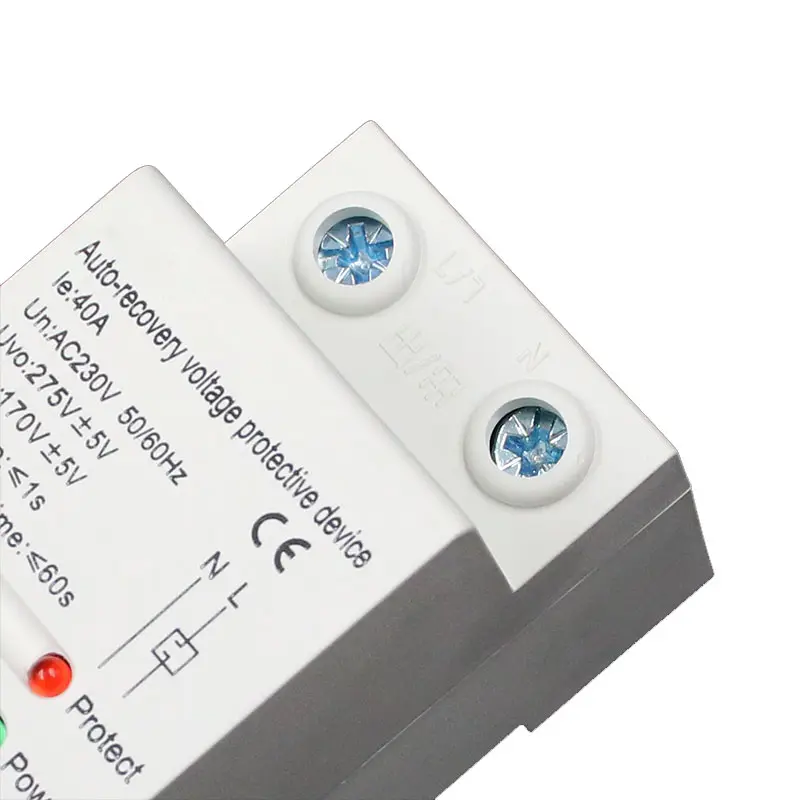

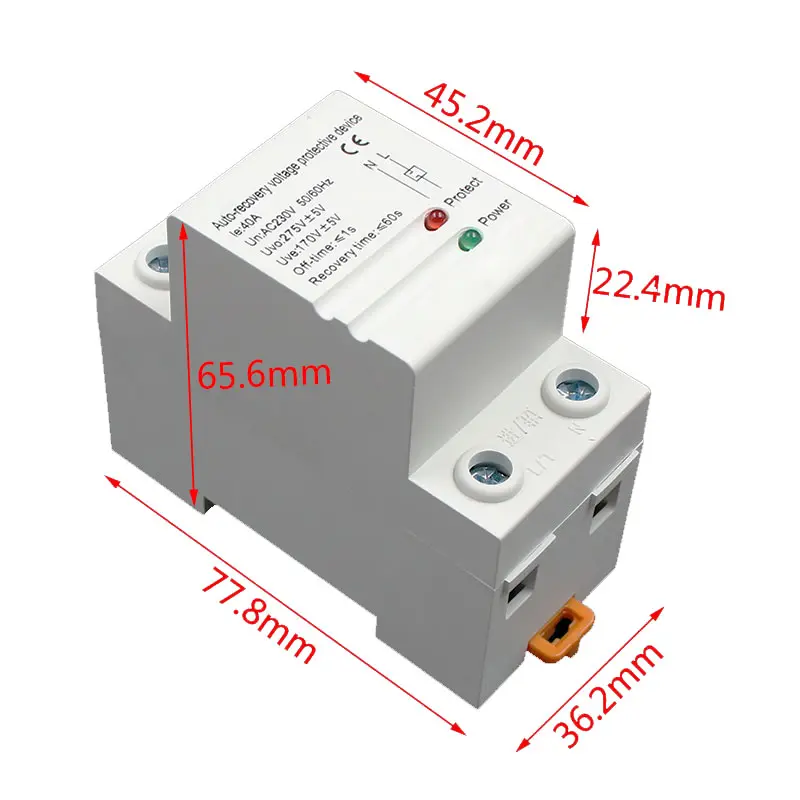

Automatic Recovery Reconnect Over Voltage Protective Device
Product device that can automatically disconnect when the overvoltage and undervoltage in the line exceed the specified value, and can automatically detect the line voltage, and can automatically close when the line voltage returns to normal.
