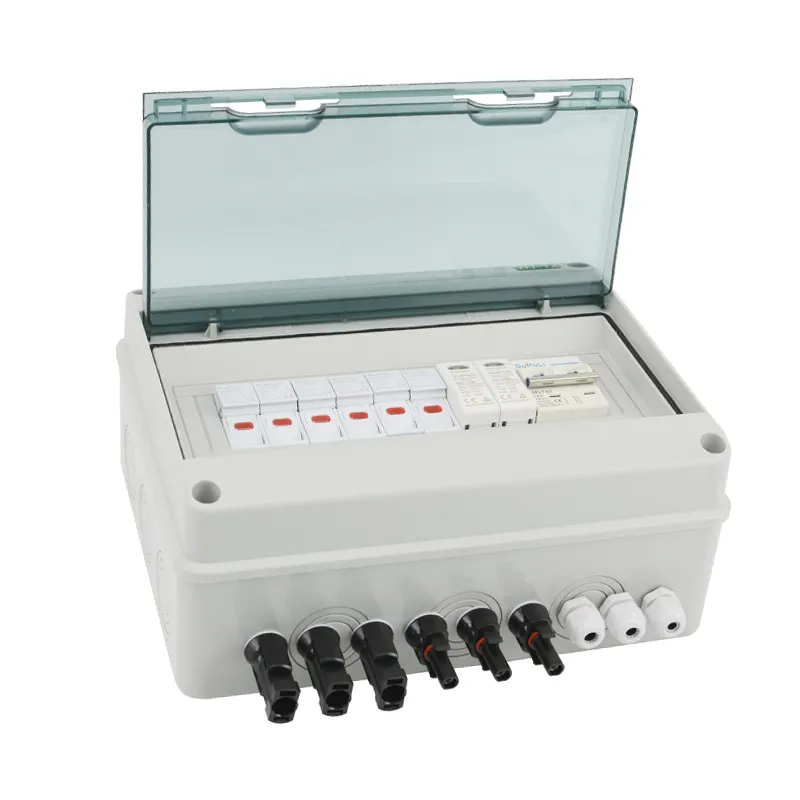

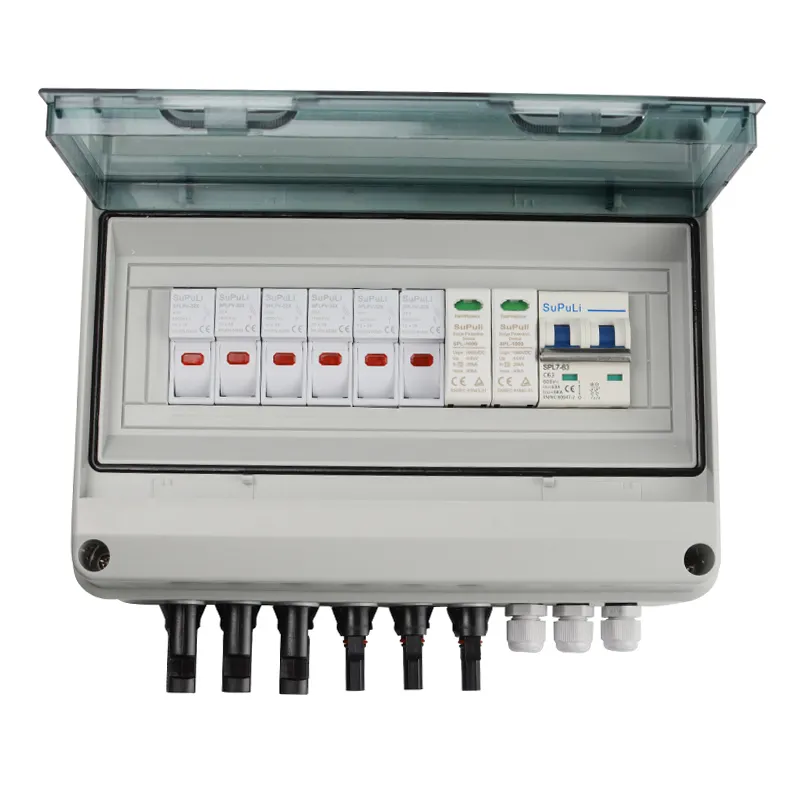

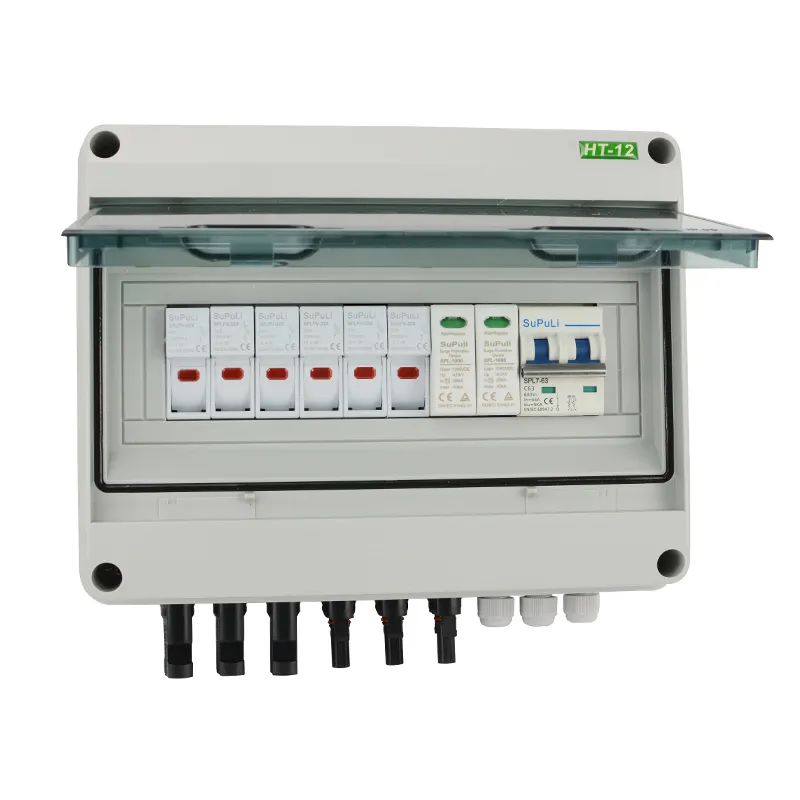

Product Name: | Combiner Box 3 String 3 In 1 Out 25A 600V Pv Array DC Combiner Box For Solar Panel Power System | |||
Model: | SPL-3/1 | |||
Rated Current: | 25A/32A | |||
Material | PC+ABS | |||
Protection Grade | IP65 | |||
Voltage | DC 600V | |||
Warranty | 3years | |||
Included accessories | 1:MCB*1(2Poles) 2:SPD*1(2Poles) 3;DC Fuse Holder*6(1000V) 4:DC Fuse 25A *6PCS 5:Waterproof box*1 | |||
Solar PV DC 3 in 1 out Pv Combiner Box For Household | ||||
Rated voltage of photovoltaic system | DC 600V | |||
Max input amp for each string | 15A/25A/32A | |||
Input strings | 3 | |||
Number of output strings | 1 | |||
Number of inverter MPPT | 3 | |||
Number of output strings | 1 | |||
Nominal discharge current | 20KA | |||
Maximum discharge current | 40KA | |||
Protection grade | IP65 | |||
Output switch | DC circuit breaker | |||
Solar connector | MC4 | |||
Installation method | Wall mounting type | |||
Box material | PVC | |||
Operating temperature | -25℃-+60℃ | |||
Installation: indoors/outdoors | Yes | |||
