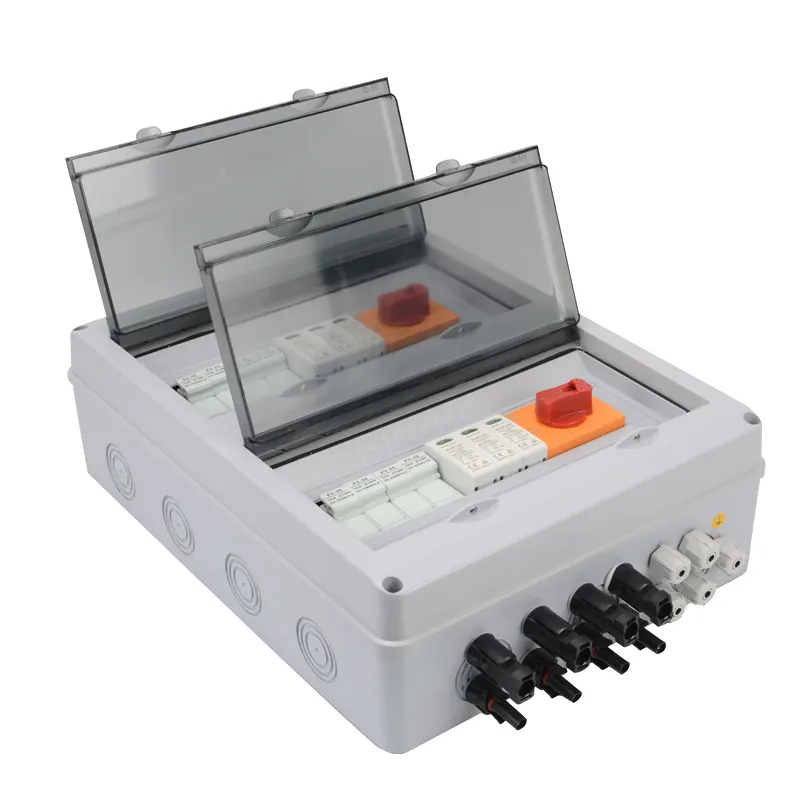

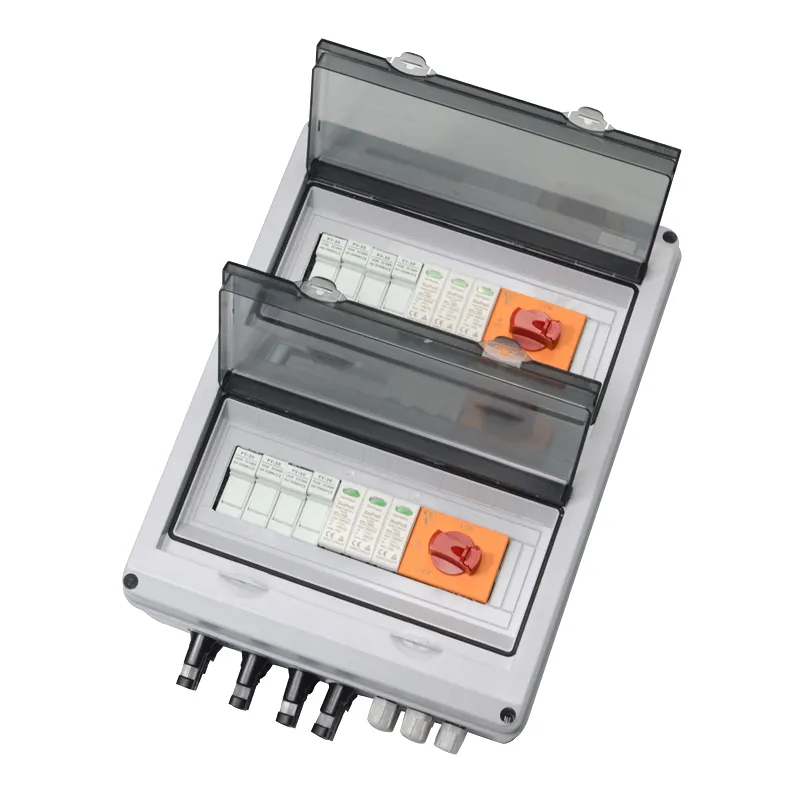

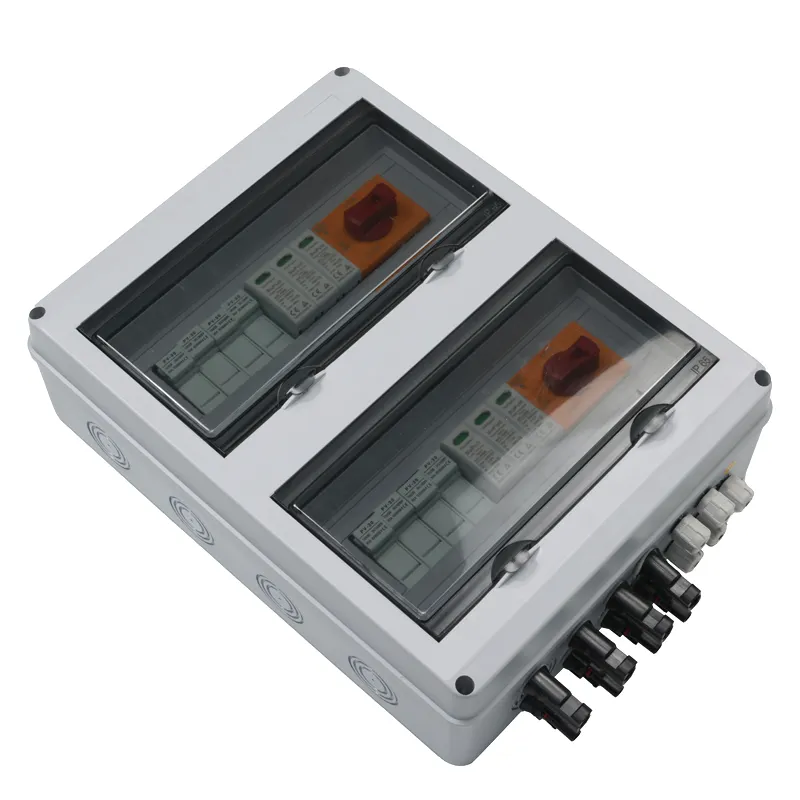

Product Name: | Factory SPLPV-4/2 IP65 Solar 4 String Dc Combiner Box 4 in 2 out 1000V 15A 25A Solar Panel Pv Combiner Box For Solar System | |||
Model: | SPL-4/2 | |||
Material | PC+ABS | |||
Protection Grade | IP65 | |||
Product Information | 1:Fuse Holder 1000V 32A *8 2:Fuse 25A*8 3:DC Surge Protector 3Pole 40KA *2 4:DC isolation switch 1000V 63A *4 | |||
Solar PV DC 4 in 2 out Pv Combiner Box For Household | ||||
Rated voltage of photovoltaic system | DC 600V/DC 1000V | |||
Max input amp for each string | 15A/25A/32A | |||
Input strings | 4 | |||
Number of output strings | 2 | |||
Number of inverter MPPT | 2 | |||
Number of output strings | 2 | |||
Nominal discharge current | 20KA | |||
Maximum discharge current | 40KA | |||
Protection grade | IP65 | |||
Output switch | DC Isolation switch | |||
Solar connector | MC4 | |||
Box material | PVC | |||
Installation method | Wall mounting type | |||
Operating temperature | -25℃-+60℃ | |||
Installation: indoors/outdoors | Yes | |||
