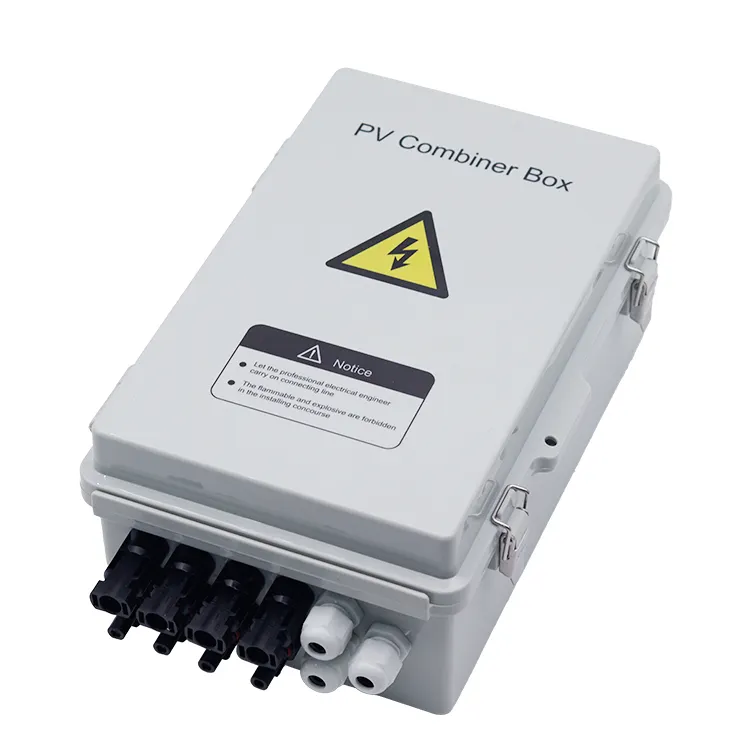

Product Name: | Factory Pv Combiner Box Dc 4 In 1 Out 4 String 1000v Pv Array Combiner Box For Solar Panel Power System | |||
Model: | SPL-4/1 | |||
Rated Current: | 15A/16A/20A/25A/32/40A/50A/63A | |||
Material | PC+ABS | |||
Protection Grade | IP65 | |||
Output switch current: | 16A/20A/25A/32/40A/50A/63A | |||
Voltage | DC 1000V-1500V | |||
Warranty | 3years | |||
Voltage protection level | 2.8KV/3.8KV | |||
Permissible relative humidity | 0-95%, no condensation | |||

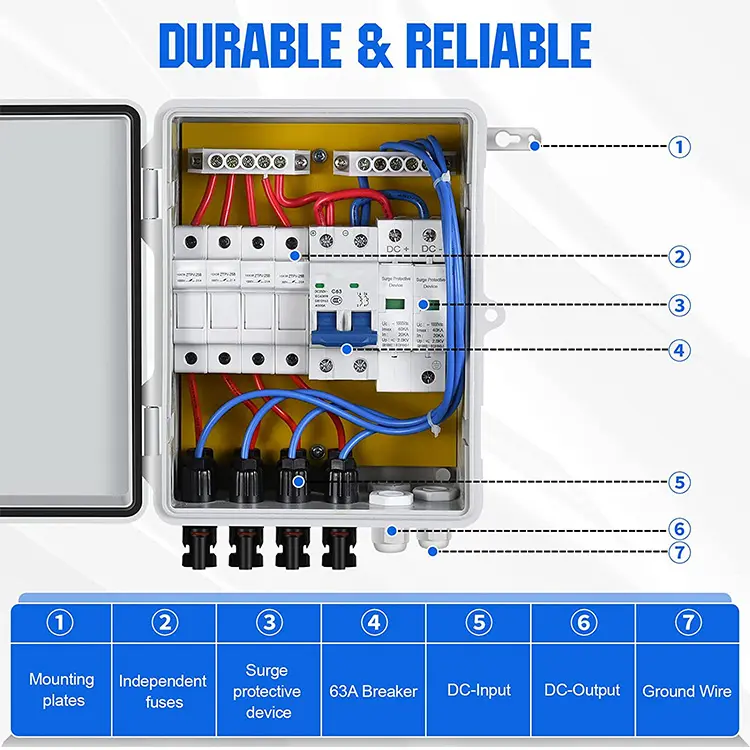

Included accessories | 1:MCB*1(2Poles) 2:SPD*1(2Poles) 3;DC Fuse Holder*4(1000V) 4:Waterproof box*1 | |||
