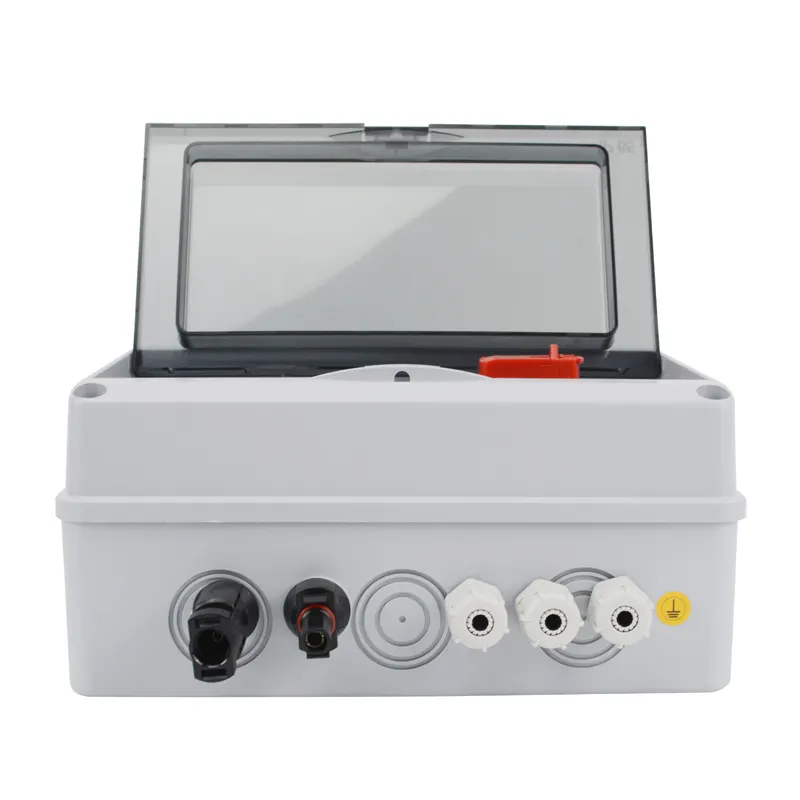

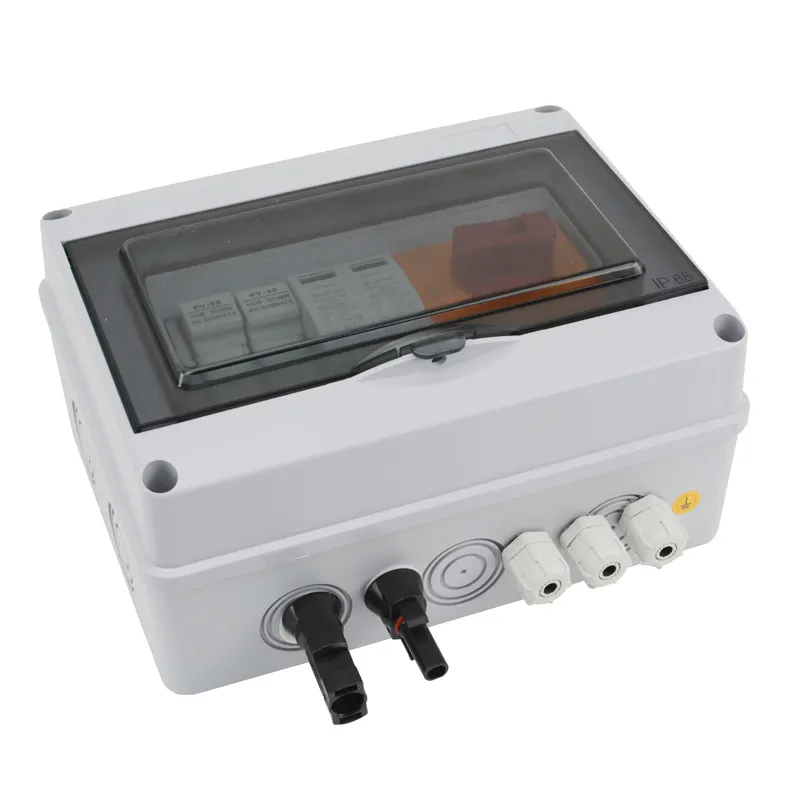

Product Name: | Combiner Box 1 In 1 Out 25A 1000V 1 String Solar Waterproof Box Pv Combiner Box For Solar Panel Photovoltaic | |||
Model: | SPL-1/1 | |||
Material | PC+ABS | |||
Protection Grade | IP65 | |||

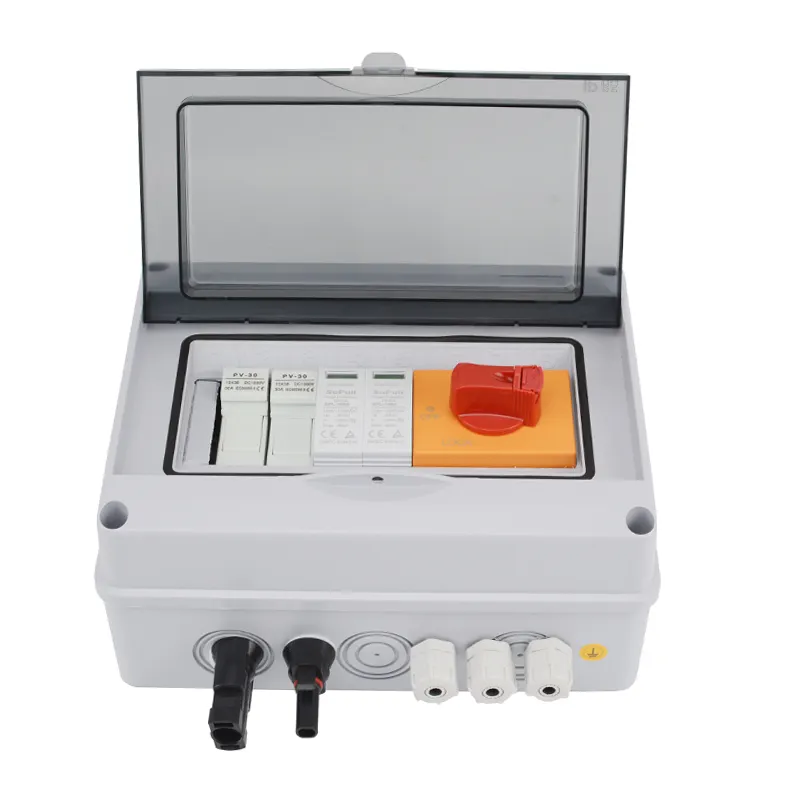

Product Information | 1:Fuse Holder 1000V 32A *2 2:Fuse 25A*1 3:DC Surge Protector 2Pole *1 4:DC DC isolation switch *1 | |||
Solar PV DC 1 in 1 out Pv Combiner Box For Household | ||||
Rated voltage of photovoltaic system | DC 1000V | |||
Max input amp for each string | 15A/25A/32A | |||
Input strings | 1 | |||
Number of output strings | 1 | |||
Number of inverter MPPT | 1 | |||
Number of output strings | 1 | |||
Nominal discharge current | 20KA | |||
Maximum discharge current | 40KA | |||
Protection grade | IP65 | |||
Output switch | DC Isolation switch | |||
Solar connector | MC4 | |||
Box material | PVC | |||
Installation method | Wall mounting type | |||
Operating temperature | -25℃-+60℃ | |||
Installation: indoors/outdoors | Yes | |||
