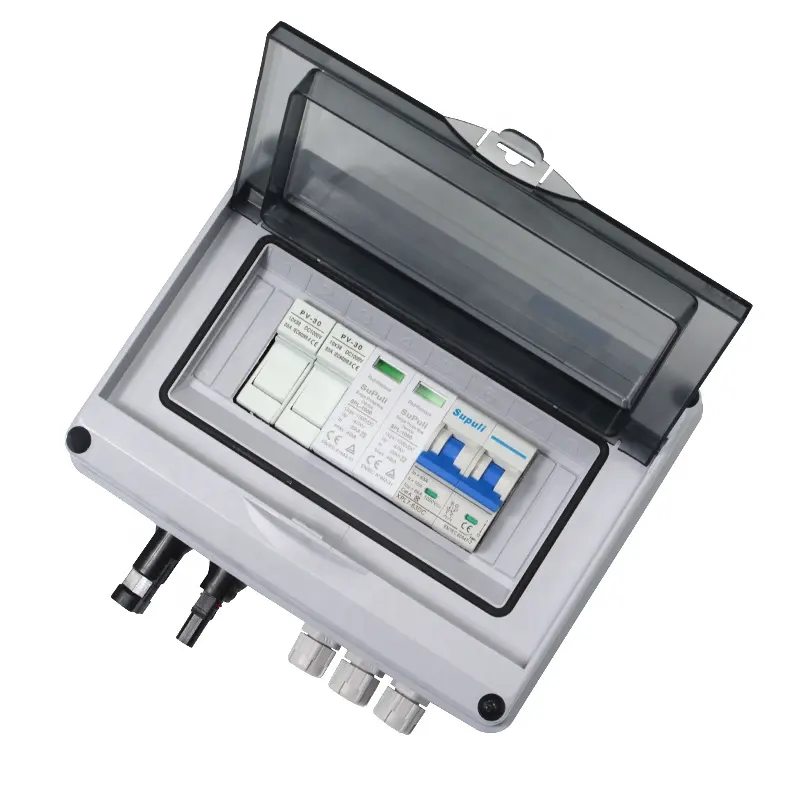

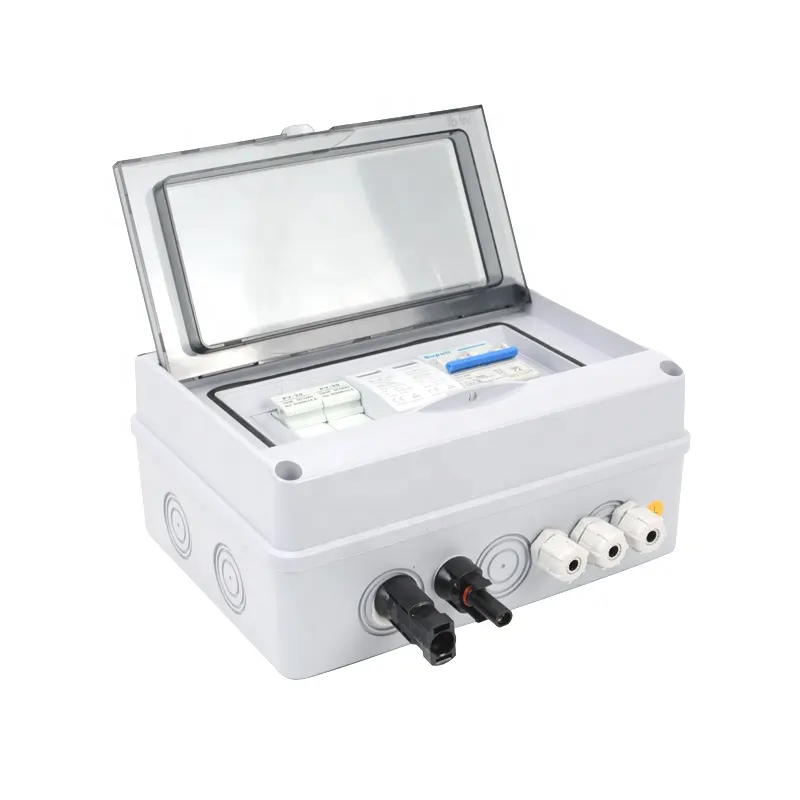

1 In 1 Out Combiner box 600V

PV String DC Combiner Boxes are key components in the solar power systems, which are placed between solar modules and the inverters.

Get A Quote
Contact us
Product Name:
1 In 1 Out Combiner Box 1 String Solar Pv Dc Combiner Box For Solar Panel Photovoltaic
Model:
SPL-1/1
Material
PC+ABS
Protection Grade
IP65
Product Information
1:Fuse Holder 1000V 32A *2
2:Fuse 25A*1
3:DC Surge Protector 2Pole *1
4:DC circuit breaker 1000V 63A *1
Solar PV DC 1 in 1 out Pv Combiner Box For Household
Rated voltage of photovoltaic system
DC 600V
Max input amp for each string
15A/25A/32A
Input strings
1
Number of output strings
1
Number of inverter MPPT
1
Number of output strings
1
Nominal discharge current
20KA
Maximum discharge current
40KA
Protection grade
IP65
Output switch
DC circuit breaker
Solar connector
MC4
Box material
PVC
Installation method
Wall mounting type
Operating temperature
-25℃-+60℃
Installation: indoors/outdoors
Yes
