Product Name: | Dc Combiner Box 6 In 1 Oot 6 String 25A Solar Combiner Box 1000v Array Pv Dc Combiner Box For Solar Panel | |||
Model: | SPL-6/1 | |||
Rated Current: | 15A/25A/32A | |||
Material | PC+ABS | |||
Protection Grade | IP65 | |||
Output switch current: | 32A | |||
Voltage | DC 1000V-1500V | |||
Warranty | 3years | |||
Voltage protection level | 2.8KV/3.8KV | |||
Permissible relative humidity | 0-95%, no condensation | |||

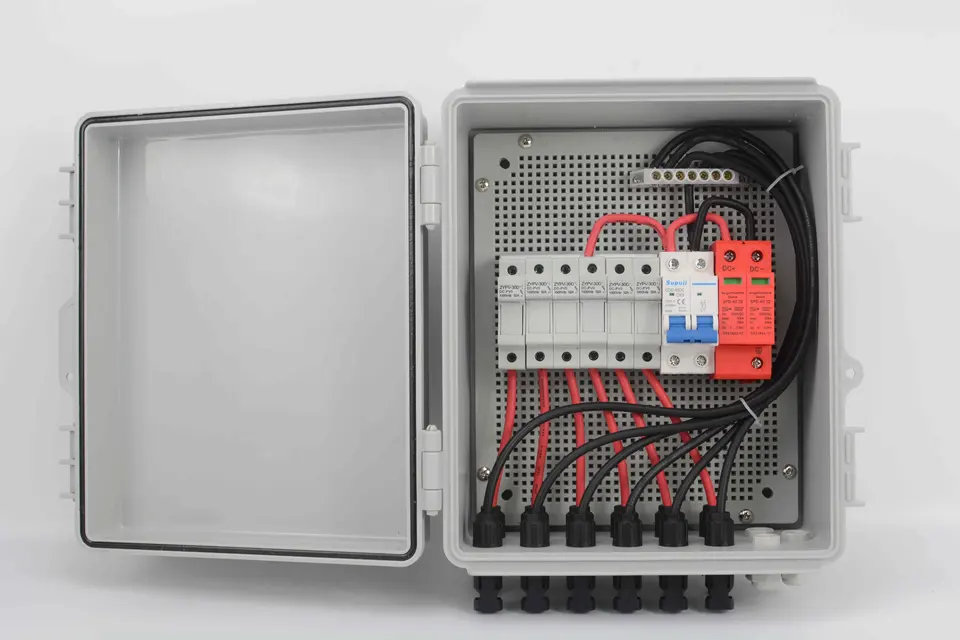

Included accessories | 1:MCB*1(2Poles) 2:SPD*1(2Poles) 3:DC Fuse Holder*4(1000V) 4:Waterproof box*1 | |||
6 In 1 Out Combiner box 1200V
PV String DC Combiner Boxes are key components in the solar power systems, which are placed between solar modules and the inverters.
