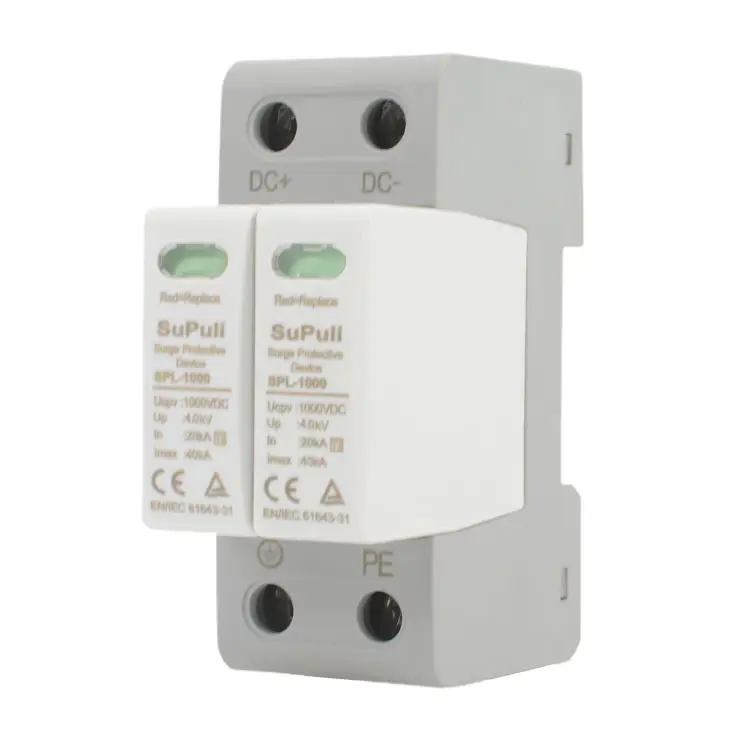

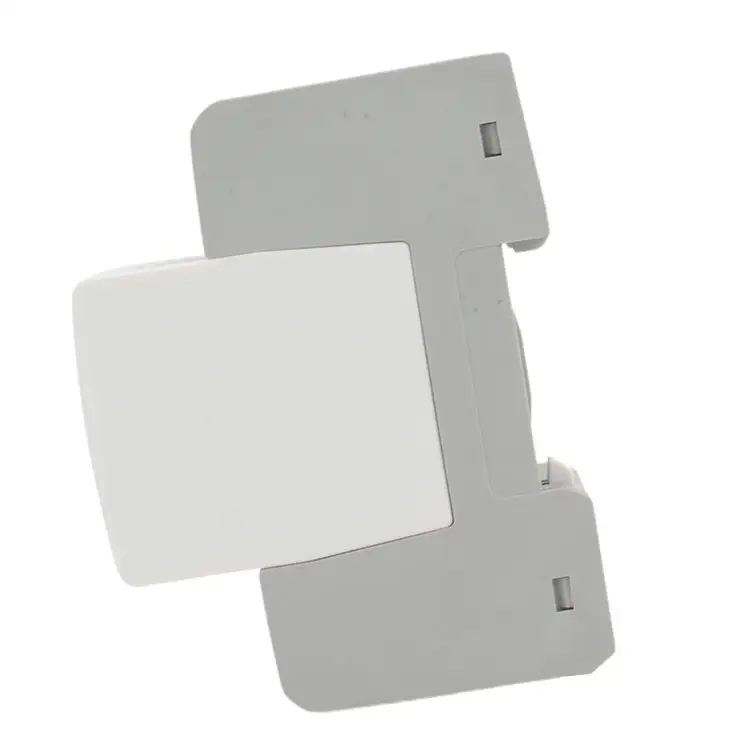

Product Name: | DC Surge Protection Device 2Pole 500V 600V 800V 1000V 1500V 20KA-40KA DC SPD For Solar System | |||
Model: | SuPuLi | |||
Rated Current: | 20KA-40KA | |||
Rated Voltage: | 500V 600V 800V 1000V | |||
Conformity Certification: | TUV ,CE,ROHS, | |||
Maximum Continuous Operating DC Voltage | 600V | 1000V | 1200V | 1500V |
Nominal Discharge Current (8/20µs) | 20kA | |||
Impulse Discharge Current (10/350 µs) | 6.25kA | |||
Total Discharge Current (10/350 µs) | 12.5kA | |||
Total Discharge Current (8/20 µs) | 40kA | |||
Maximum Discharge Current (8/20 µs) | 40kA | |||
Voltage Protection Level | ≤2200V | ≤4000V | ≤4400V | ≤5200V |
Response Time | < 25 ns | |||
Short-Circuit Current Rating | 2000A | |||
Operating Temperature Range | -40 ºF to +158 ºF [-40 ºC to +70 ºC] | |||
Permissible Operating Humidity | 5%...95% | |||
Atmospheric pressure and altitude | 80k Pa ... 106k Pa / -500 m ... 2000 m | |||
Terminal Screw Torque | 39.9 Ibf·in [4.5 Nm] | |||
Mounting | 35 mm DIN Rail, EN 60715 | |||
Degree of Protection | IP 20 (built-in) | |||
Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | |||
Thermal Protection | Yes | |||
Operating State / Fault Indication | Green OK / Red Defect | |||
