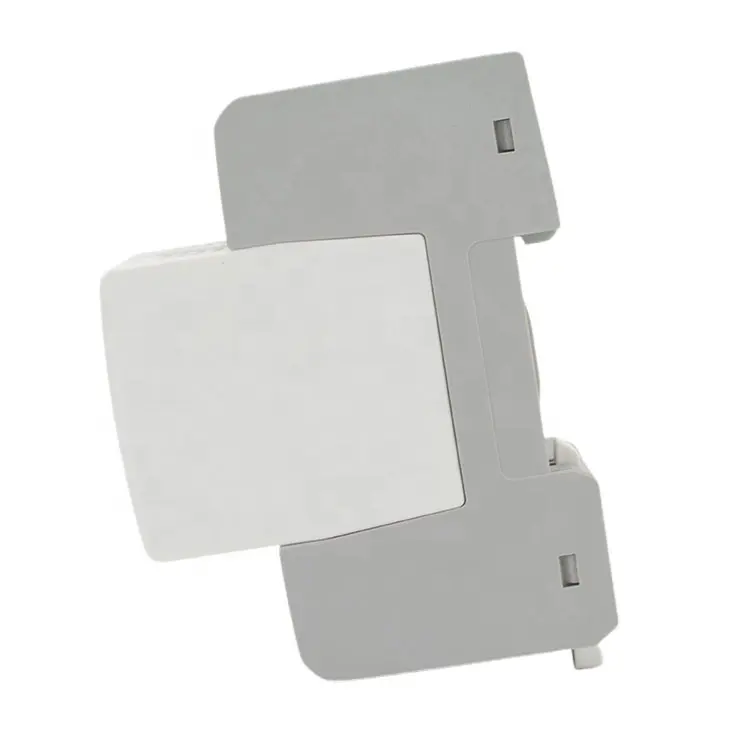

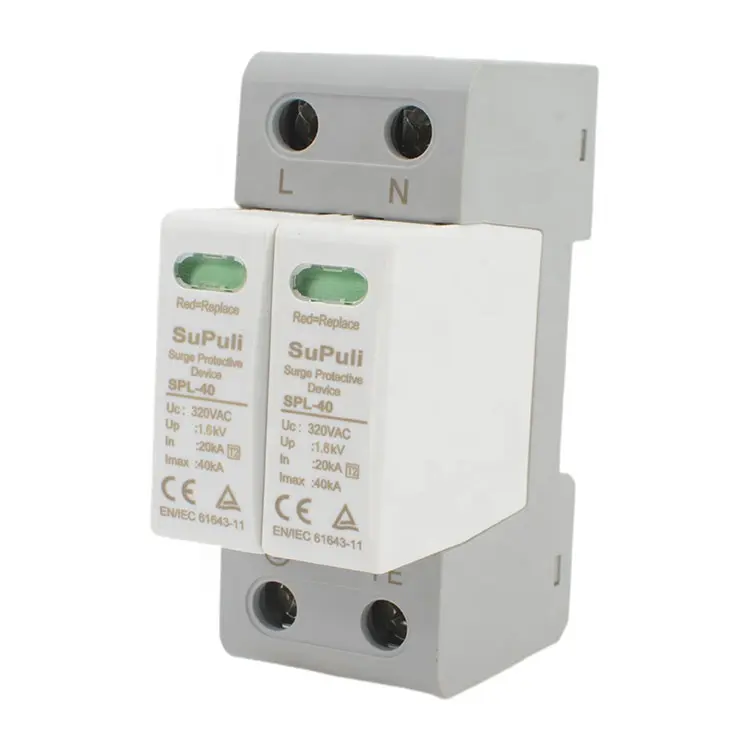

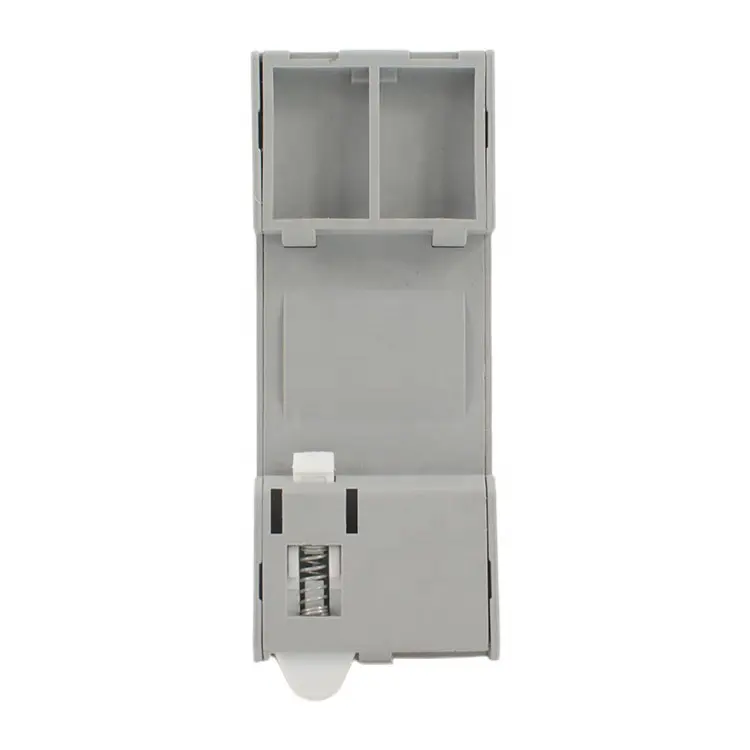

AC Surge Protection Devices 2Pole 320V

Surge protection device (in short SPD,alias:surge suppres-sor surge arrester)is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz,<380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnor-mal, it also could be replaced for the module when has operating voltage.
