Product Name | AC Surge Protector 2 Pole 385V 20ka-40ka Surge Protector Device Ac SPD | |||
Nominal AC Voltage (50/60Hz)U./Un | 230V | |||
Maximum Continuous Operating Voltage(AC) | 385V | |||
Nominal Discharge Current (8/20us) | 20kA | |||
Maximum Discharge Current (8/20us) | 40kA | |||
Voltage Protection Level | ≤1800V | |||
Response Time | < 25 ns | |||
Back-Up Fuse (max) | 125AgL/gG | |||
Short -Circuit Current Rating (AC) | 25 kA/ 50 kA | |||
ToV Withstand 5s | 335V | |||
TOV 120min | 440V Safe Fail | |||
Operating Temperature Range | -40 ºF to +158 ºF [-40 ºC to +70 ºC] | |||
Permissible Operating Humidity | 5%...95% | |||
Atmospheric pressure and altitude | 80k Pa ... 106k Pa / -500 m ... 2000 m | |||
Terminal Screw Torque | 39.9 Ibf·in [4.5 Nm] | |||

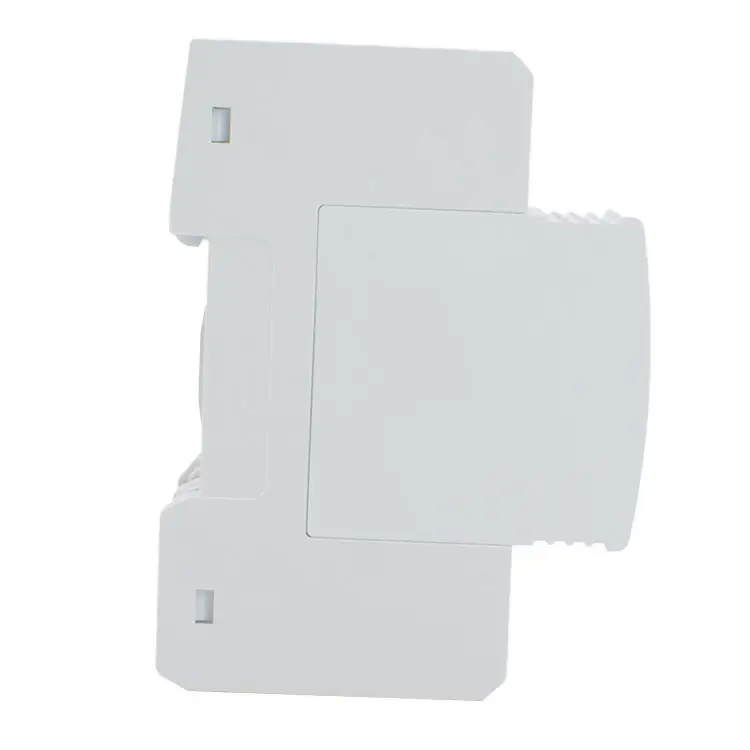

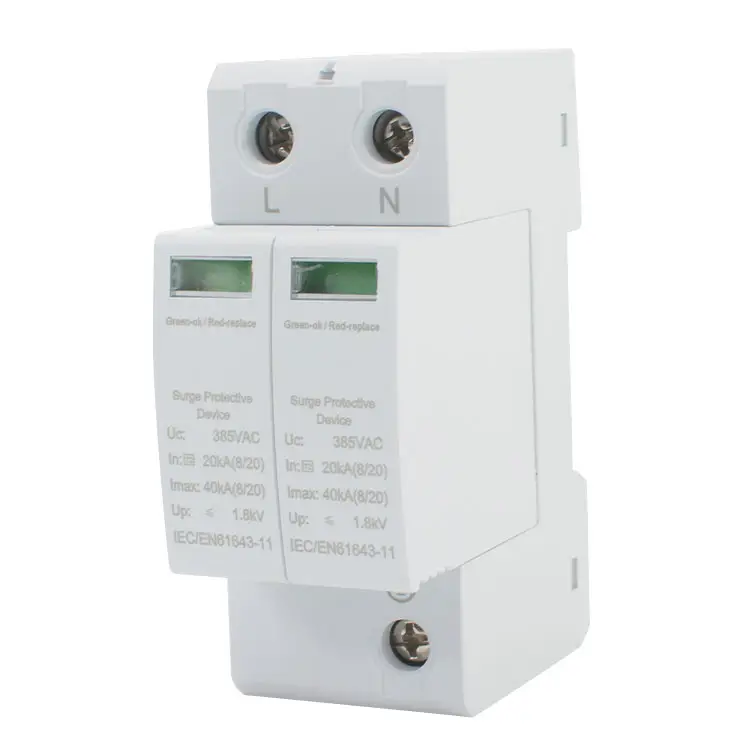

AC Surge Protection Devices 2Pole 385V

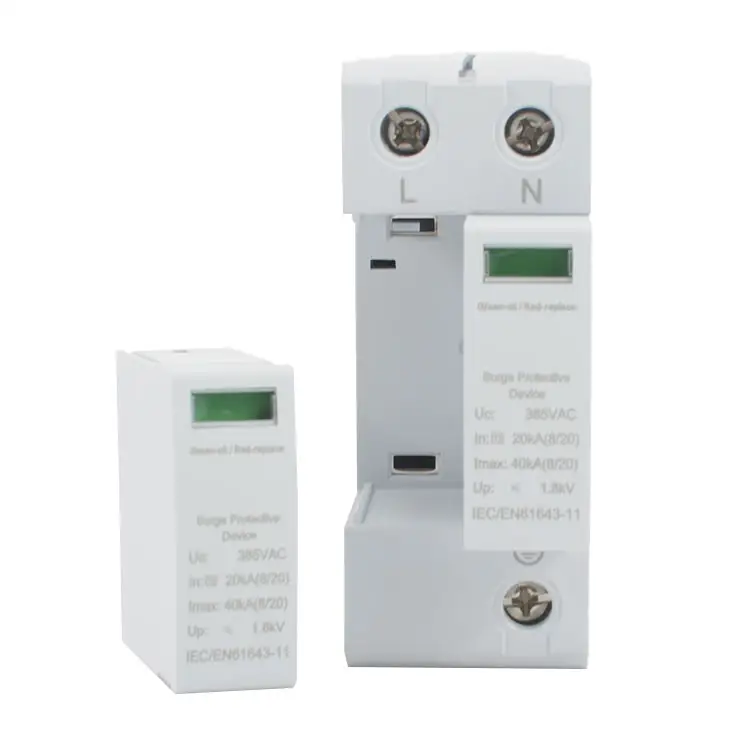

Surge protection device (in short SPD,alias:surge suppres-sor surge arrester)is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz,<380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnor-mal, it also could be replaced for the module when has operating voltage.
