Specification | ||||

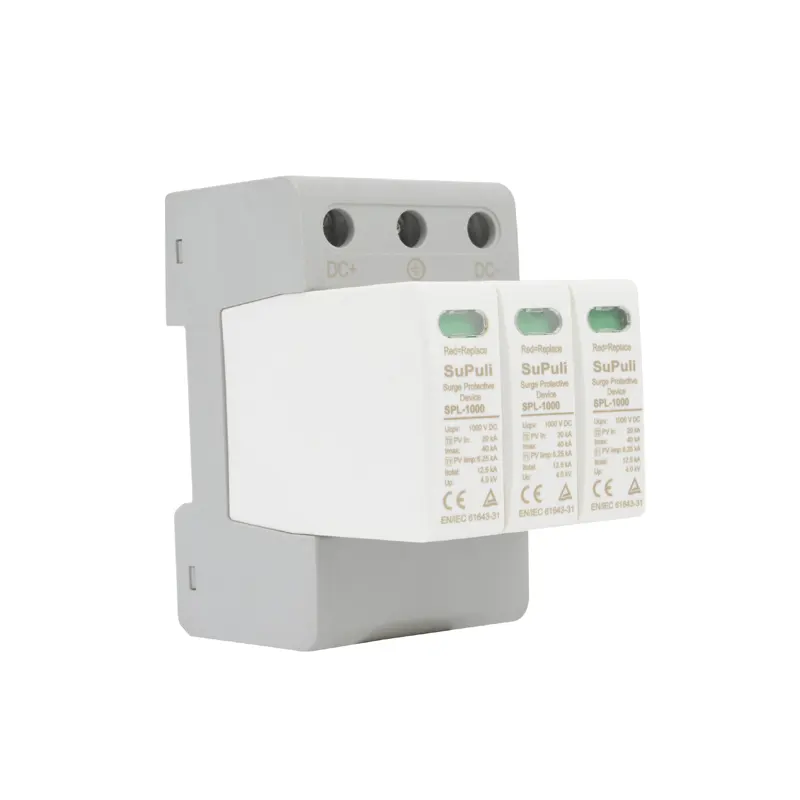

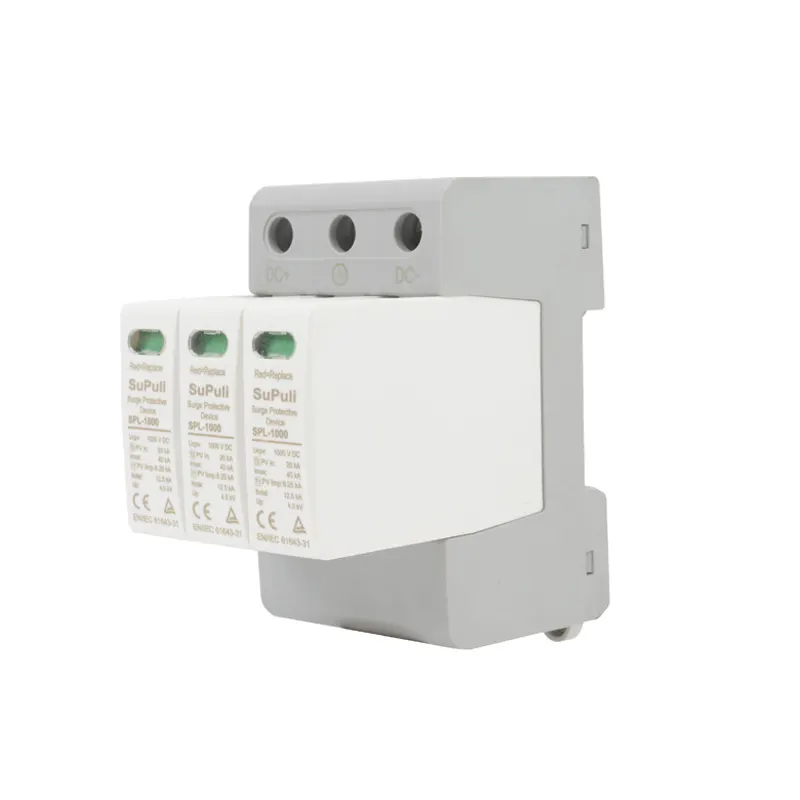

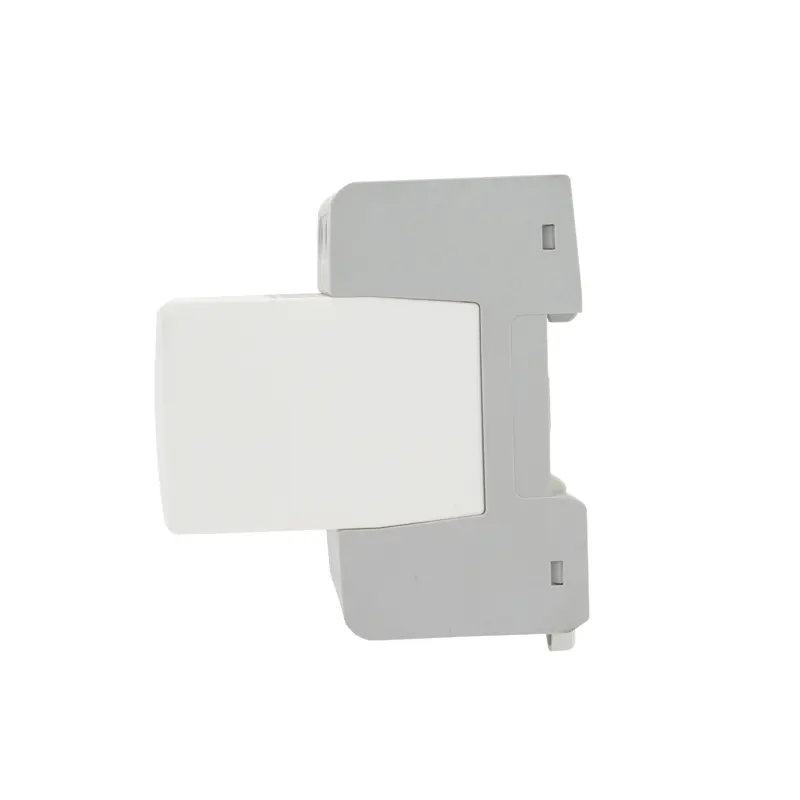

Product Model | SPLPV-1000V | |||
Pole | 2P | 3P | ||
Maximum Continuous Operating DC Voltage | 600V | 1000V | 1200V | 1500V |
Nominal Discharge Current (8/20µs) | 20kA | |||
Total Discharge Current (8/20 µs) | 40kA | |||
Maximum Discharge Current (8/20 µs) | 40kA | |||
Voltage Protection Level | ≤2200V | ≤4000V | ≤4400V | ≤5200V |
Response Time | < 25 ns | |||
Short-Circuit Current Rating | 2000A | |||
Operating Temperature Range | -40 ºF to +158 ºF [-40 ºC to +70 ºC] | |||
Permissible Operating Humidity | 5%...95% | |||
Conductor Cross Section (max) | 2 AWG (Solid, Stranded)/ 4 AWG (Flexible) 2 2 35 mm (Solid, Stranded)/ 25 mm (Flexible) | |||
Operating State / Fault Indication | Green OK | Red defect | ||
Housing Material | Extinguishing Degree UL 94 V-0 | |||
Certificate | CE Certificate | Rosh Certificate | TUV Certificate | UKCA |
Product Features | 1. The protection flow is large, the residual pressure is extremely low, and the response time is fast; 2. Adopt the latest arc extinguishing technology to completely avoid fire; 3. Using temperature control protection circuit, built-in thermal protection; 4. With power status indication, indicating the working status of the surge protector; 5. Strict structure, stable and reliable work. | |||
